Type N PFA Insulated Flat Pair Thermocouple Cable / Wire (IEC)

Change Currency

SKU
XE-2435
£23.18 £19.32
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

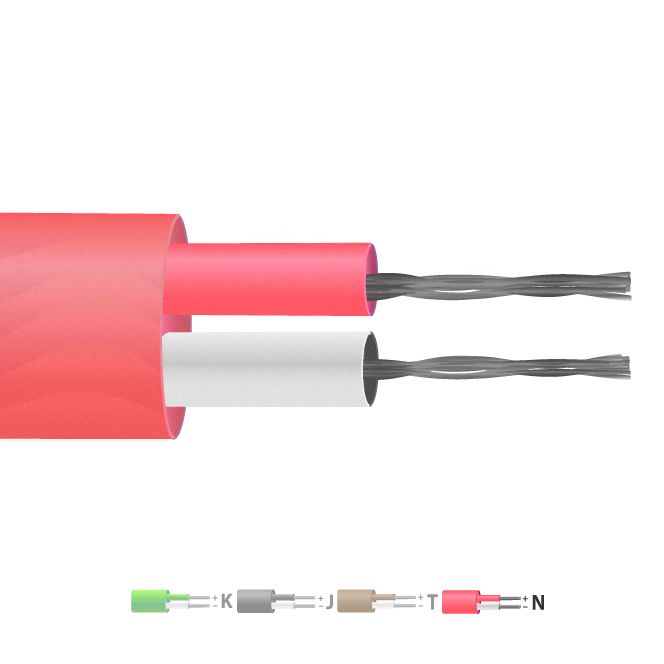

Type N PFA Insulated Flat Pair Thermocouple Cable / Wire (IEC)

PFA Teflon® insulated flat pair. PFA Teflon® has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam & pressure.

Specifications



General Description Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments.
Cable Length 10m, 25m, 50m, 100m
Cable Type Single pair of PFA insulated conductors, laid flat with PFA jacket
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Pink
+ Colour Pink
- Colour White
Drain Wire No
Insulation Material PFA Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 6.2
Max. Temperature +260°C
Min. Temperature -75°C
+ Conductor Copper
- Conductor Nisil
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type N
Tolerance Class 1

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
