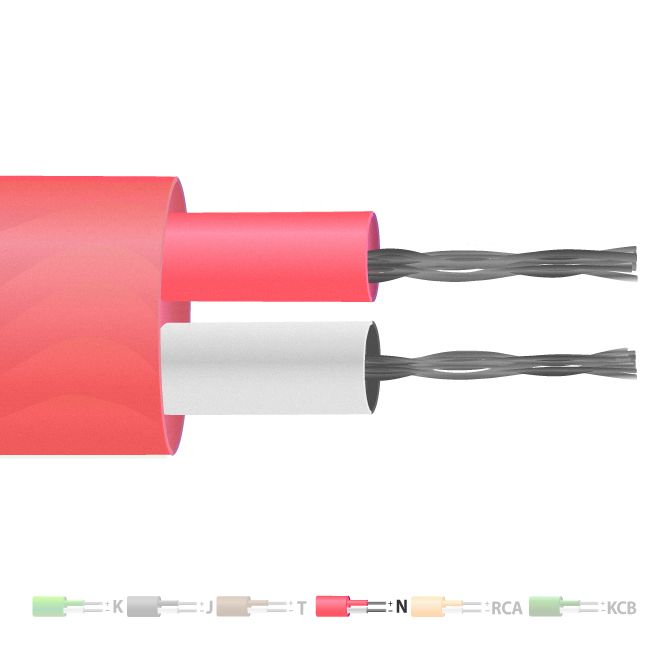

Type N PVC Insulated Flat Pair Thermocouple Cable / Wire (IEC)

Change Currency

SKU
XE-2400
£11.56 £9.63
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

Type N PVC Insulated Flat Pair Thermocouple Cable / Wire (IEC)

Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.

Specifications

General DescriptionGood general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length10, 25, 50, 100m
Cable TypeFlat pair construction
Core / Strands7/0.2mm
Conductor Cross Section 7/0.2 (mm2)0.219
Outer ColourPink
+ ColourPink
- ColourWhite
Insulation MaterialPVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre)6.2
Max. Temperature+105°C
Min. Temperature-10°C
+ ConductorNicrosil
- ConductorNisil
ScreenNo
Standards MetColour code (cores & jacket) to IEC-584-3
Thermocouple TypeN
ToleranceClass 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.




Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
