Thermocouple Cable / Wire Type U PVC Insulated Flat Pair (BS)

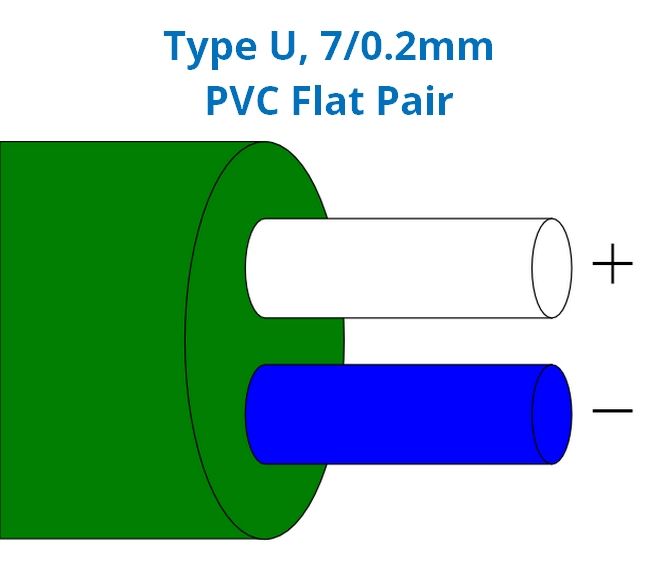

Image is for colour coding illustration only

Price is per metre - please add required quantity for basket. Only 1,155 metres left in stock

Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.

***See Specifications Tab for full details***

General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length Priced per metre
Cable Type Flat pair construction
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Green
+ Colour White
- Colour Blue
Insulation Material PVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +105°C
Min. Temperature -10°C
Standards Met BS
Thermocouple Type U
Tolerance Class 2
GBP EUR USD JPY
Excl. VAT: £0.30 Incl. VAT: £0.36
Labfacility Part No:
WU-001-D
Lead Time:
In-Stock
Tariff Code:
90330000
Product Code
WU-001-D
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:
