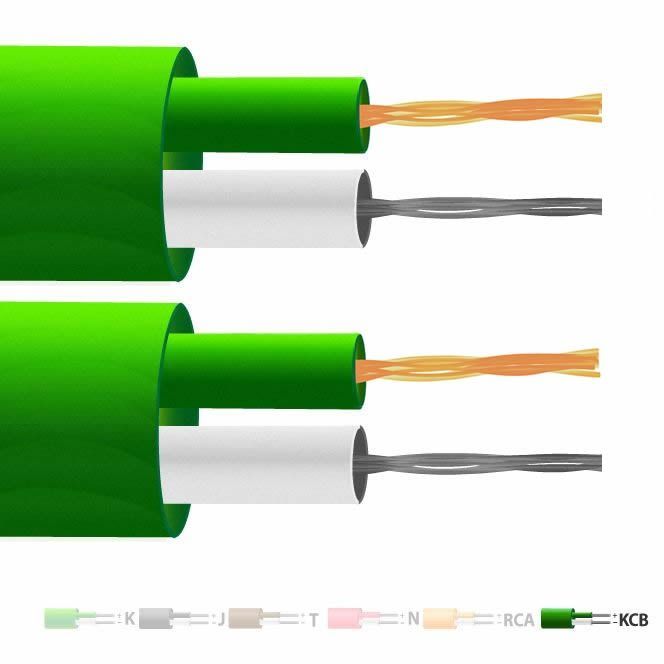

Type VX (KCB) PVC Insulated Flat Pair Thermocouple Cable / Wire (IEC) for use with Type K Thermocouples - 13/0.2mm
Change Currency
Specifications
| General Description | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Cable Length | 10, 25, 50, 100, 200m |
| Cable Type | Flat pair construction |
| Core / Strands | 13/0.2mm |
| Conductor Cross Section 13/0.2 (mm2) | 0.408 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Insulation Material | PVC Insulated |
| Loop Resistance 13/0.2 (Ohms per combined metre) | 1.2 |
| Max. Temperature | 105°C |
| Min. Temperature | -10°C |
| + Conductor | Copper |
| - Conductor | Constantan |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Termination Type | VX (KCB) |
| Tolerance | Class 2 |
Labfacility Thermocouple Cables
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 200m, 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go. Find out more on https://www.labfacility.com
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
