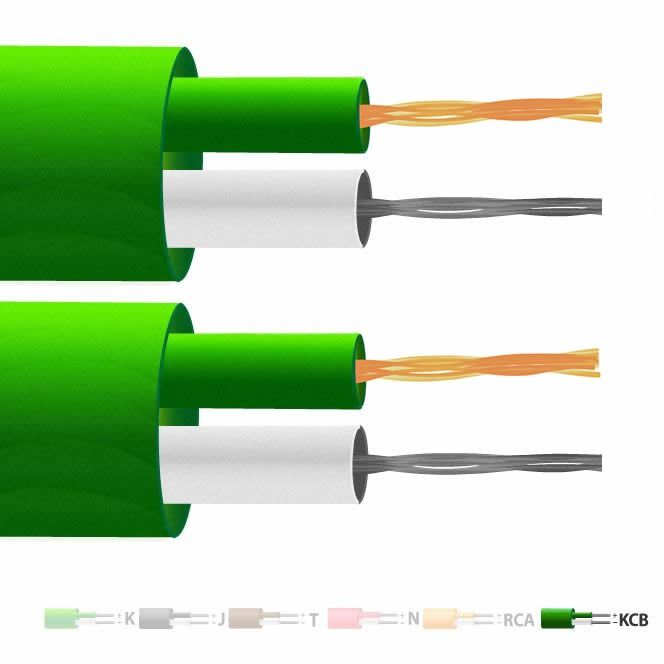

Type VX (KCB) PVC Insulated Flat Pair Thermocouple Cable / Wire (IEC) for use with Type K Thermocouples

Change Currency

SKU
XE-2550
£5.71 £4.76
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Specifications

General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length 10, 25, 50, 100, 200m
Cable Type Flat pair construction
Core / Strands 7/0.2mm or 13/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Conductor Cross Section 13/0.2 (mm2) 0.408
Outer Colour Green
+ Colour Green
- Colour White
Insulation Material PVC Insulated
Loop Resistance 7/0.2 (Ohms per combined metre) 2.3
Loop Resistance 13/0.2 (Ohms per combined metre) 1.2
Max. Temperature +105°C
Min. Temperature -10°C
+ Conductor Copper
- Conductor Constantan
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type VX (KCB)
Tolerance Class 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
