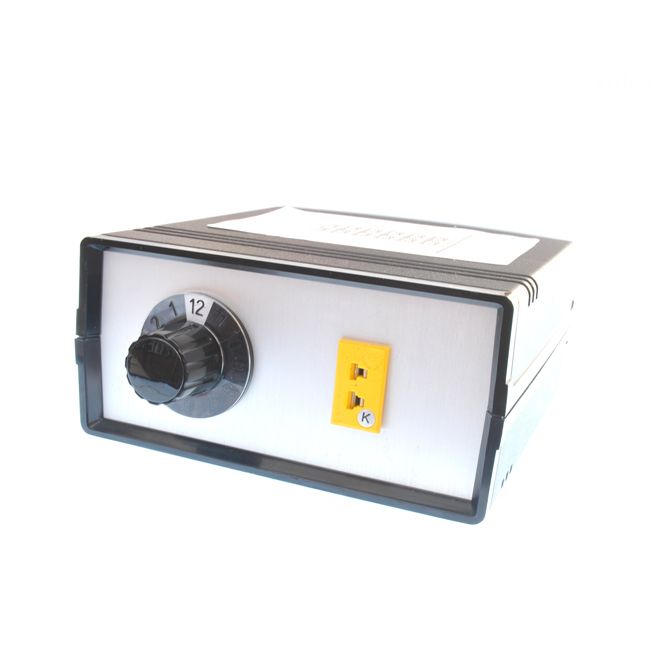

A 6 way selector in a moulded housing with aluminium front and rear panels. The rear inputs are switched via a front mounted rotary selector switch to the single output socket.

Internally wired with thermocouple compensating cable and available with thermocouple types K, J, T, N & R/S.

SPECIFICATION:

• Construction - Portable / Bench mounting unit in moulded housing with aluminium front and rear panels
• Size - 130mm wide x 60mm high x 145mm deep
• Input connectors – 6 miniature compensated thermocouple sockets
• Output connectors - Single miniature compensated thermocouple socket
• Available in ANSI type K, J, T, N & R/S
