IEC 12 Way Thermocouple Selector Switch, Bench Mounting

Change Currency

SKU
XE-6301
£195.07 £162.56
Lead Time:
Select Options
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

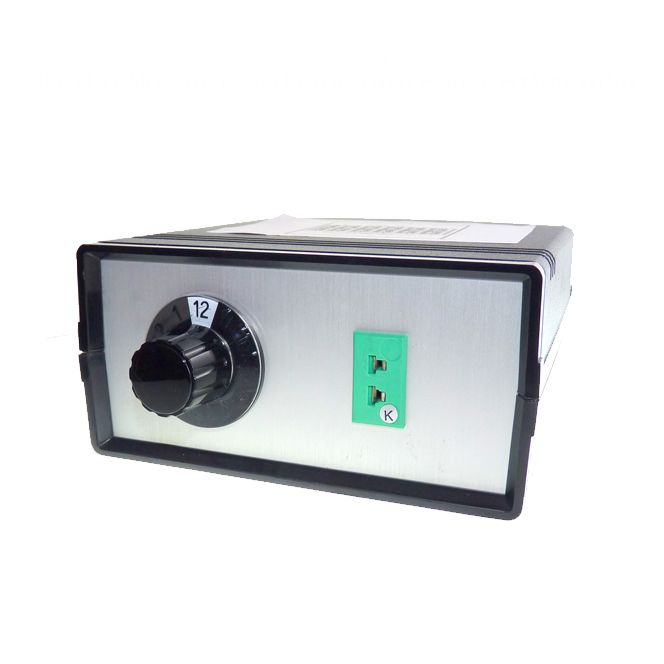

A 12 way selector in a moulded housing with aluminium front and rear panels. The rear inputs are switched via a front mounted rotary selector switch to the single output socket.

Internally wired with thermocouple compensating cable and available with thermocouple types K, J, T, N & R/S.

SPECIFICATION:

  • Construction - Portable / Bench mounting unit in moulded housing with aluminium front and rear panels
  • Size - 130mm wide x 60mm high x 145mm deep
  • Input connectors – 12 miniature compensated thermocouple sockets
  • Output connectors - Single miniature compensated thermocouple socket
  • Available in IEC type K, J, T, N & R/S
