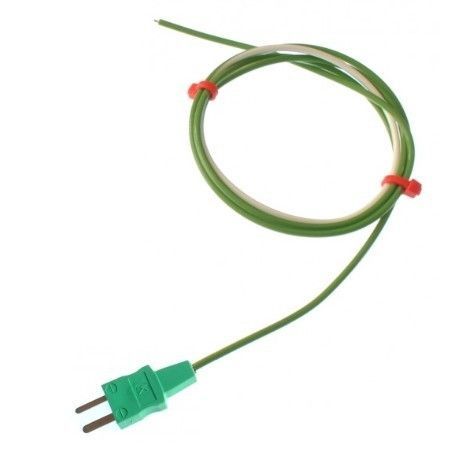

IEC PTFE Single Shot Exposed Junction Thermocouple with Moulded-on Miniature Plug - Type K - 5M Length
Change Currency
A very fast response PTFE insulated thermocouple, made from a unique single shot cable construction which provides a gas, steam and water tight insulation along the cable.
This sensor is ideally suited to temperature monitoring of test pieces in autoclave and aerospace applications.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information |
|---|
Specifications
| General Description | Unique single shot cable construction Resistant to chemicals, oils and fluids. Suitable for aerospace applications and is wildly used in autoclaves. |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | K IEC |
| Cable Length | 5M |
| Cable Type | PTFE |
| Core / Strands | 1/0.376mm |
| Termination Type | Terminated with a miniature flat pin plug (Plug max temp 220°C) |
| Max. Temperature | 250°C |
| Standards Met | IEC-584-3 |
| Connector Type | Plug |
| Connector Size | Miniature |
