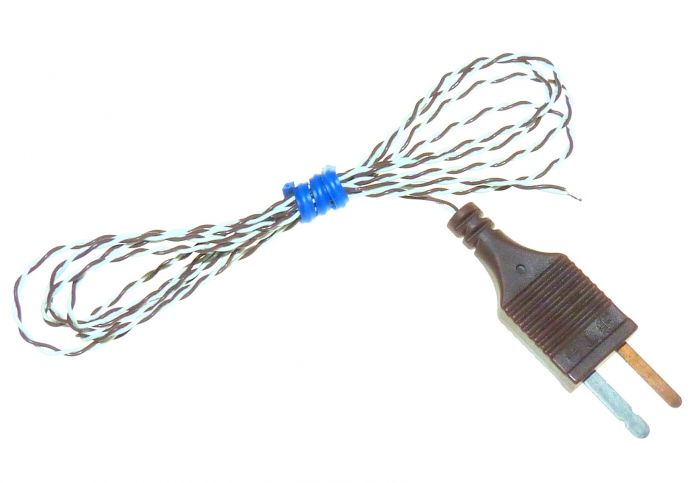

IEC Exposed Junction thermocouple PFA Insulated Twin Twisted with Moulded-on Plug - Type T - 1/0.2mm - 1M Length
Change Currency
SKU
XE-0029-001
£10.46
£8.72
- Buy 5+ for £10.19 £8.49 each
Moulded plug gives a robust construction as well as providing a waterproof termination.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information |
|---|
Specifications
| General Description | Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam etc. |
|---|---|
| Sensor Type | Exposed Junction |
| Thermocouple Type | T |
| Cable Length | 1M |
| Cable Type | PFA insulated conductors twisted together |
| Core / Strands | 1/0.2mm |
| Termination Type | Miniature moulded flat pin plug, colour coded ‘green’ in accordance IEC specification |
| Max. Temperature | 260°C |
| Min. Temperature | -75°C |
| Tolerance | Class 1 |
| Standards Met | Colour code (cores & jacket) to IEC-584-3 |
| Connector Type | Plug |
| Connector Size | Miniature |
