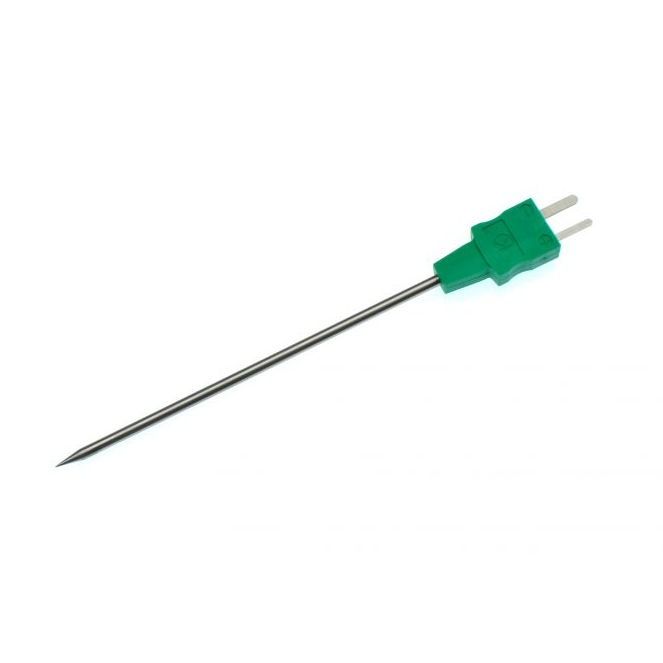

IEC Needle Tip Style Thermocouple Probe with Moulded on Miniature Plug - Type K - 110mm

Change Currency

SKU
XE-0009-001
£27.89 £23.24
  • Buy 2 - 14 for £23.92 £19.93 each
  • Buy 15+ for £22.15 £18.46 each
Lead Time:
In-Stock
Weight:
200g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Moulded plug gives a robust construction as well as providing a waterproof termination.

Specifications

General Description Flexible sheath can be bent/formed to suit many applications and processes
Sensor Type Mineral insulated
Thermocouple Type K
Element/hot junction Single element, grounded junction offering fast response
Probe Diameter 3.3mm
Probe Length 110mm
Termination Type Miniature moulded flat pin plug, colour coded ‘green’ in accordance IEC specification
Max. Temperature +260°C (Moulded-on plug +110°C)
Min. Temperature -50°C
Standards Met IEC
Connector Type Plug
Connector Size Miniature (moulded-on)
Probe Material Needle point tip, 316 stainless steel

Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.
