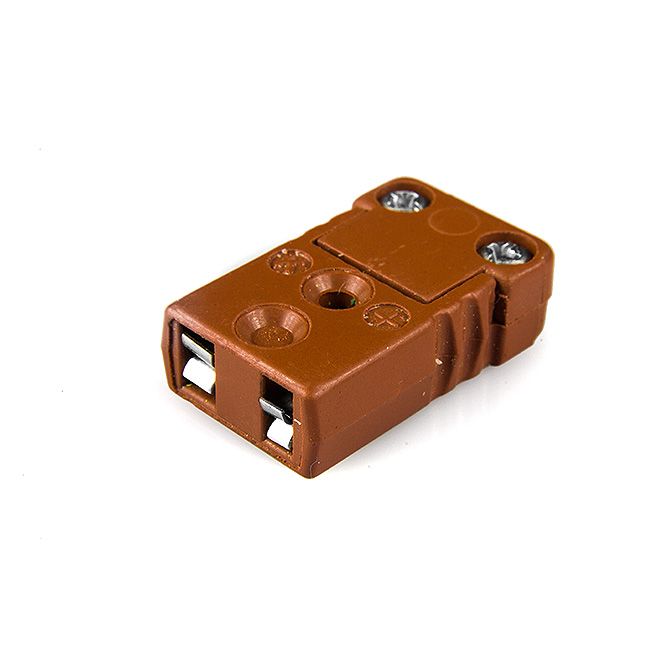

High Temperature Miniature Thermocouple Connector Socket MTC-J-F-HTP Type J

Change Currency

SKU
XE-1187-001
£12.94 £10.78
  • Buy 2 for £8.40 £7.00 each
  • Buy 10 for £8.04 £6.70 each
  • Buy 50 for £7.42 £6.18 each
Lead Time:
In-Stock
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

High Temperature Miniature Thermocouple Connector Socket MTC-J-F-HJP Type K

All connectors have type identification on body. High temperature for use up to 425°C

Specifications

General Description Heavy duty plastic body. High temperature for use up to 425°C For R,S & B compensating alloys limit the maximum usable temperature to 260°C
Thermocouple Type Type J High Temp
Connector Type High Temp Socket
Connector Size Miniature
Colour Brown
Max. Temperature 425°C
+Positive Contact Iron
-Negative Contact Copper Nickel
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation of High Temperature Miniature Thermocouple Socket From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
