L60+ Thermocouple Welder & accessories

Change Currency

SKU
XE-6101-BUNDLE
£1,292.24 £1,076.87
Customise L60+ Thermocouple Welder & accessories
L60 Thermocouple & Fine Wire Welder with full accessory kit   + £1,292.24 £1,076.87

* Required Fields

Your Customisation
L60+ Thermocouple Welder & accessories
L60+ Thermocouple Welder & accessories
Summary

    £1,292.24 £1,076.87

    Lead Time:
    In-Stock
    Weight:
    5.00KG
    Tariff Code:
    851590000
    Manufacturer:
    Labfacility
    Country of Manufacture:
    GB
    RoHS Compliant:
    Product Compliance:

    Read our product spotlight article on the L60 Thermocouple welder

    The L60+ Thermocouple Welder & Fine Wire Welder, manufactured by Labfacility, is a compact, simple-to-use instrument designed for thermocouple and fine wire welding.

    It is primarily designed for use by sensor manufacturers to produce commercial grade thermocouple junctions; it is ideal for producing large numbers of exposed junction thermocouples for test and development laboratories. The L60 Thermocouple Welder is ideally suited to transducer and RTD extension lead attachment.

    Use of the Thermocouple Welder does not require special skills and most operatives will be capable of producing quality work with little practice. The instrument is supplied with a full range of user accessories including a footswitch.

    Suitable for use with wires of up to 1.1mm diameter an argon gas shield facility is included but a satisfactory thermocouple junction is produced without the need for argon. The output energy of the L60 Thermocouple Welder can be varied up to 60 Joules.

    • Simple to use Thermocouple Welder
    • Designed for the production of commercial grade thermocouple junctions
    • Also suitable for other fine wire work
    • Front panel or footswitch operation
    • Argon gas shield facility

    Supplied complete with the following accessories:

    Wire Holding Pliers & Lead Safety Glasses Magnifying Eyeglass
    Argon Hose 2 x Carbon Electrodes Spare 2A Fuse & Mains Lead
    Footswitch for greater ease of use

    Welder Pen & Plate

    Impact Clip



    Specifications



    General Description The Thermocouple Welder, manufactured by Labfacility, is a compact, simple-to-use instrument designed for thermocouple and fine wire welding.
    Dimensions 220mm (W) x 120mm (H) x 250mm (D)
    Power Consumption Max 170VA dropping to 20VA during charging
    Power Supply 110-120 Vac or 220-250 Vac, 50-60Hz
    Standards Met BS EN / CE
    Energy Output 0-60 Joules
    Duty Cycle Minimum 5-10 welds/min
    Welding Capacity Wires up to 1.1mm diameter
    Argon Pressure Regulator Level <5 bar
    Maintenance Apart from keeping the electrode in good order, no other maintenance is required.

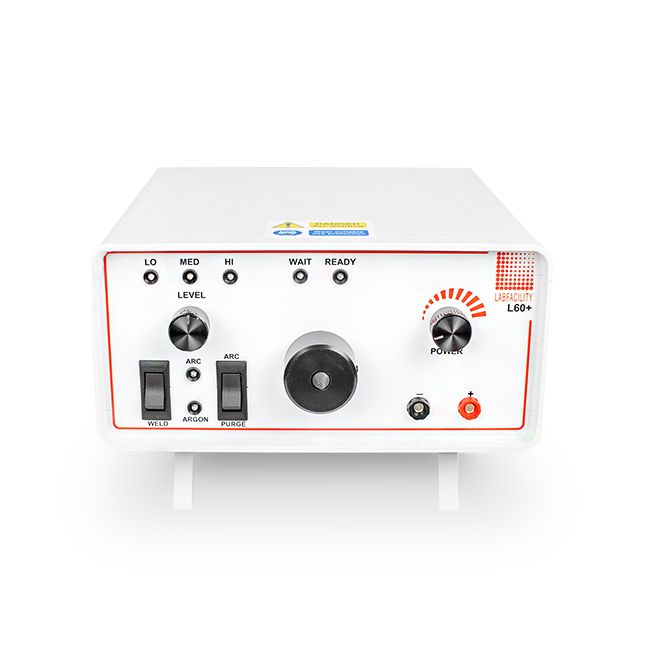

    THERMOCOUPLE WELDER CONTROLS

    Welder Controls

    A – ARC

    Argon gas and weld current controlled by the “Weld” switch. LED indication.

    B – PURGE Allows the gas line and electrode shield to be purged of air prior to a new welding period.
    C - WELD SWITCH Initiates a welding operation (in “arc” mode also opens the Argon valve).
    D - ARGON LED Indicates when the Argon control valve is open and gas is flowing.
    E - WAIT LED Glows when weld charge is building.
    F - READY LED “Ready to Weld” indication.
    G - POWER

    Rotary control of the capacitor charge voltage.

    H - LEVEL SELECTOR

    Selects the total capacitance available giving the following values with LED indication -

    "LO" = 0 to 6 Joules

    "MED" = 0 to 28 Joules

    "HI" = 0 to 64 Joules

    I - ELECTRODE HOLDER Rotary control of the capacitor charge voltage.
    J - RED SOCKET

    Output socket for using the pliers supplied.

    K - BLACK SOCKET

    Output socket, this provides an additional earth.



    Thermocouple Welder Rear Panel

    Thermocouple Welder Rear Panel

    A – On / Off Switch

    Power to instrument on / off

    B – Weld Jack Socket Weld Jack Socket Footswitch connection
    C - Argon Inlet For connection to Argon Supply
    D -IEC Power Inlet module For selection of 110-120 Vac or 220-250 Vac power supply. Factory default setting: 220-250 Vac

    L60 Thermocouple & Fine Wire Welder

    The L60 welder from Labfacility is a compact, simple-to-use instrument designed for thermocouple and fine wire welding. It is primarily designed for use by sensor manufacturers to produce commercial grade thermocouple junctions; it is ideal for producing large numbers of exposed junction thermocouples for test and development laboratories. The L60 is ideally suited to transducer and RTD extension lead attachment.
