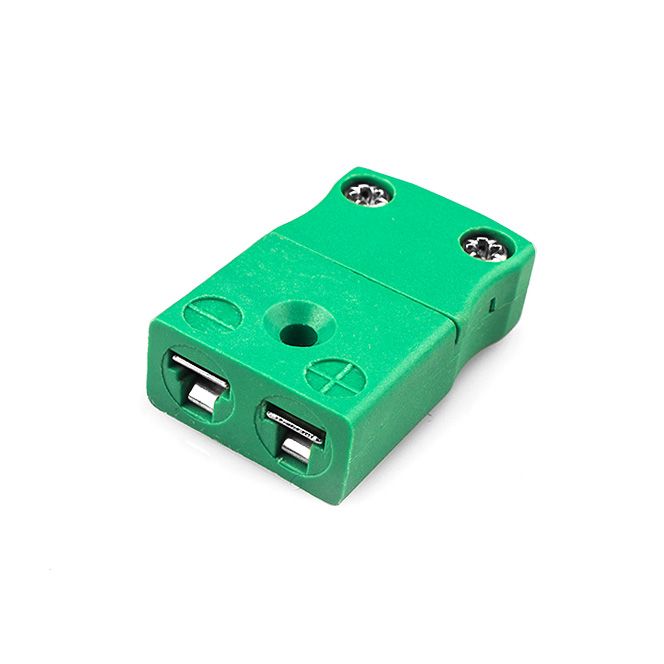

Miniature Thermocouple Connector In-Line Socket Type AM-R/S-FS R/S ANSI
Change Currency
SKU
XE-1312-001
£3.65
£3.04
- Buy 2 - 9 for £3.18 £2.65 each
- Buy 10 - 99 for £2.70 £2.25 each
- Buy 100+ for £2.54 £2.12 each
Miniature Thermocouple Connector In-Line Socket AM-R/S-FS Type R/S ANSI
Ideal for general purpose use, all contacts are polarised to ensure correct connection. These connectors will accept thermocouple cable up to 4mm in diameter.
Specifications
| General Description | Ideal for general purpose use. Contacts are polarised to ensure correct connection. |
|---|---|
| Thermocouple Type | R/S ANSI |
| Connector Type | Socket |
| Connector Size | Miniature |
| Colour | Green |
| Max. Temperature | 220°C |
| +Positive Contact | Copper |
| -Negative Contact | Copper Alloy |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of Miniature Thermocouple Connector Socket From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
