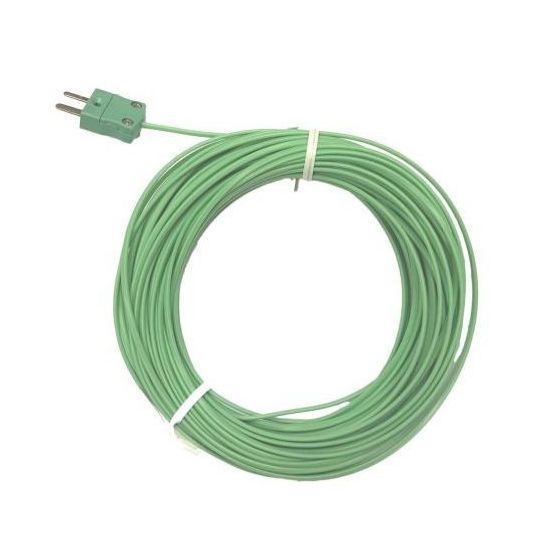

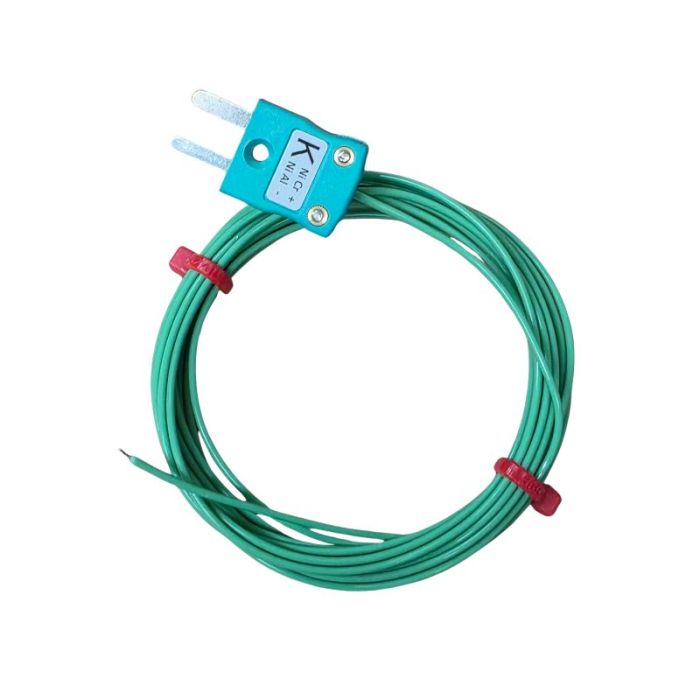

PFA Insulated Flat Pair IEC Exposed Junction Thermocouple with Miniature Plug - Type K - 1/0.3mm Strand Size - 3M Length

Change Currency

SKU
XE-3486-001
£17.69 £14.74
  • Buy 2 - 9 for £14.34 £11.95 each
  • Buy 10+ for £11.80 £9.83 each

Maximum 30 characters

Maximum 40 characters

Series:
Exposed Junctions
Lead Time:
7 - 10 working days
Weight:
300g
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information

Specifications

Sensor Type Fast response, welded exposed junction
Thermocouple Type K IEC
Cable Connection Terminated with a miniature flat pin plug
Cable Length 3M
Core / Strands 1/0.3mm
Termination Type Miniature Plug
Standards Met (cores & jacket) to IEC-584-3
Insulation Material Insulation rating: -75°C to 260°C
