Lascar EL-GFX-VAC2 - Dual Channel GFX Vaccine Monitoring Kit

Change Currency

Enquire Here


Lead Time:
7 - 10 working days
Tariff Code:
Country of Manufacture:
RoHS Compliant:
Product Compliance:

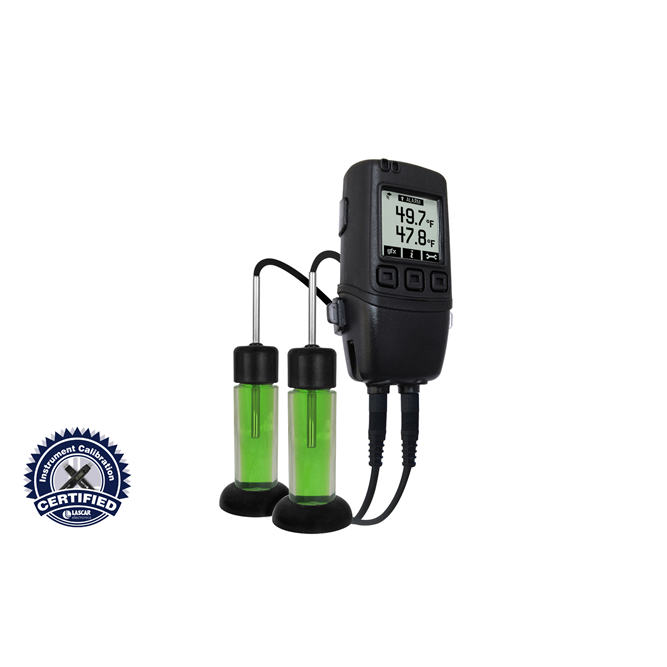

The EL-GFX-VAC2 is a vaccine monitoring kit combining a USB dual channel data logger with two glycol bottle probes. The unit stores over 250,000 readings, has an on-screen display showing max, min and last log as well as an on-board graph of the data collected.

Buttons allow the user to start, stop and restart the logger in the field and alarm breaches can be registered with both LED and audible alarms. The logger can be battery powered or used with a USB wall adaptor. Two channels allow measurement of two areas of a refrigerator or a refrigerator and freezer at the same time.

This product meets and exceeds CDC standards for vaccine monitoring.

Application Info
The EL-GFX-VAC2 is suitable for a wide variety of applications. These include:

  • Vaccine Storage
  • Blood & Blood Component Storage
  • Cold Chain in the Pharma Industry

The EL-GFX-VAC2 comes with a calibration certificate issued at 2 and 8°C. It typically takes around 2 weeks to calibrate this product, please place your order today and our sales team will then confirm the exact delivery date.

Type GFX Vaccine Monitoring Kit
Communications Protocol USB Dual Channel
Accuracy (overall error) ±0.1°C (±0.2°F)
Logging Interval User selectable between 2 seconds and 1 hour
Ambient Operating Temperature -10 to 40°C (14 to 104°F)
Standards Met Calibration certificate: Supplied at 2 and 8°C
Measuring range -40 to 60°C (-40 to 140°F)
Product Download Icon

Data Sheet -EL-GFX-VAC2

Data loggers are essential temperature monitoring devices for fridges and freezers storing vaccines. Lascar offers a range of vaccine monitoring kits that follow both CDC and NHS guidelines and that include a digital data logger, a glycol bottle probe and
