Pt100 3 wire class B Resistance Thermometer, KNE Head with Transmitter

Change Currency

SKU
XE-5506
£134.83 £112.36

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order, this will add 2-3 days lead time to your order.

General DescriptionPt100 probe with KNE terminal head fitted with a transmitter
Sensor TypePt100 (100 Ohms @ 0°C) to IEC 751, Class B, 3 wire
Process Connection1/2"BSP x 6mm
CalibrationIEC
Probe Diameter6mm
Probe Length150mm
Sheath Material316 stainless steel
Head TypeKNE
Max. Temperature+450°C (connection head @ 170°C)
Min. Temperature-50°C
IP RatingIP67
AccuracyClass B
TransmitterYes

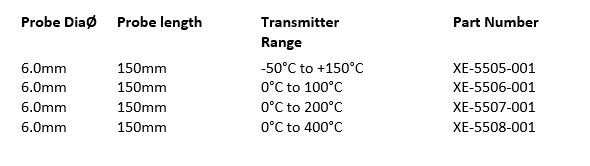

RangeVarious ranges of transmitter available
Number of Wires3

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.




Product Download Icon

Why is Calibration so important?

The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
