Pt100 4 wire class B Resistance Thermometer, DIN B Head RTD / PRT

Pt100 4 wire class B Resistance Thermometer, DIN B Head RTD / PRT

Details

Pt100 4 wire class B Resistance Thermometer, DIN B Head RTD / PRT

  • Pt100 probe with DIN B terminal head
  • Class B, 4 wire connection
  • Various probe available lengths
  • 6.0mm diameter in 316 stainless steel
  • With Stainless steel plug (no thread)
  • Sensor temperature rating -100°C to +450°C
  • Conforms to IEC 751

Specifications

  • Sensor type: Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire
  • Construction: 6.0mm diameter stem in 316 stainless steel
  • Termination: IP67 DIN B connection head
  • Process connection: Stainless Steel plug
  • Probe temperature range: -100°C to +450°C (connection head @ 170°C)

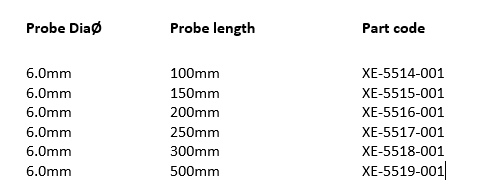

Data Table

GBP EUR USD JPY
Excl. VAT: £48.68 Incl. VAT: £58.42

* Required Fields

Labfacility Part No:
XE-5516
Lead Time:
Select Options
Tariff Code:
90330000
Product Code
RC Style
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:

Information - Need Calibration? Call us on +44 (0) 1243 871280
