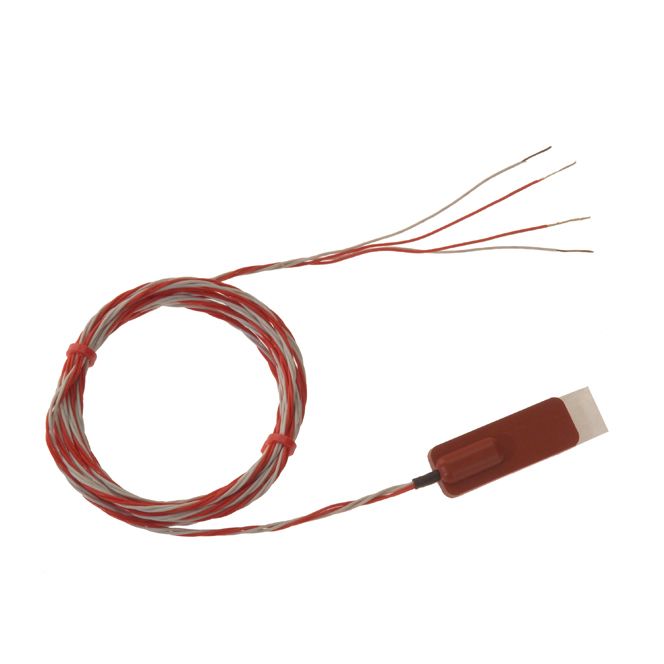

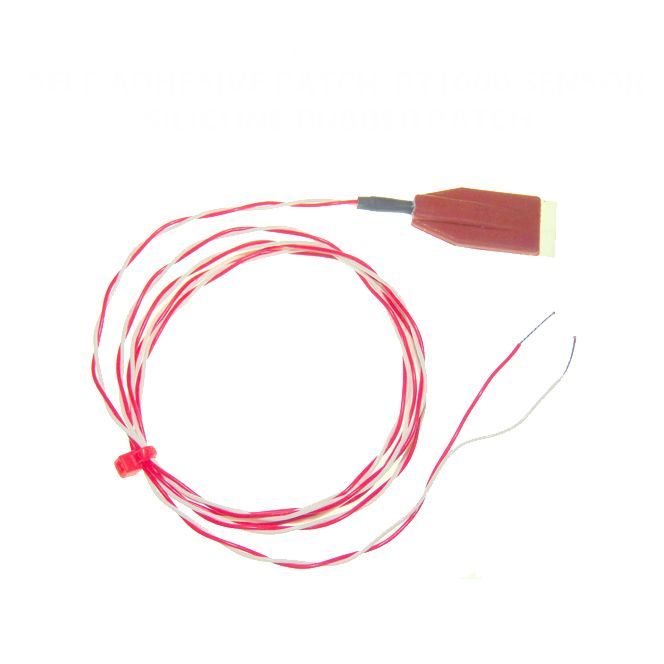

Self Adhesive Patch PT100 Sensor - Type PRT - 1M Length

Change Currency

SKU
XE-3662-001
£64.81 £54.01
  • Buy 2 - 14 for £51.36 £42.80 each
  • Buy 15+ for £46.06 £38.38 each
Series:
Patch Pt1000
Lead Time:
In-Stock
Weight:
200g
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Specifications

General Description Pt1000 element encapsulated in a silicone rubber patch, Self-adhesive, aluminium foil backing
Sensor Type Pt1000 (1000Ω @ 0°C), thin film Class B to IEC751
Element Pt1000 sensor to IEC751 Class B
Patch dimensions Length 30mm x Width 15mm x Height 4mm
Cable Length 1M
Cable Type Teflon ® insulated twin twisted
Core / Strands 7/0.2mm
Cable Termination Bare tails
Max. Temperature 150°C
Min. Temperature -50°C
