Handheld Spring Loaded Thermocouple with Copper Disc Tip - Type K

Change Currency

SKU
XE-3816-001
£41.78 £34.82
Lead Time:
5 - 7 working days
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

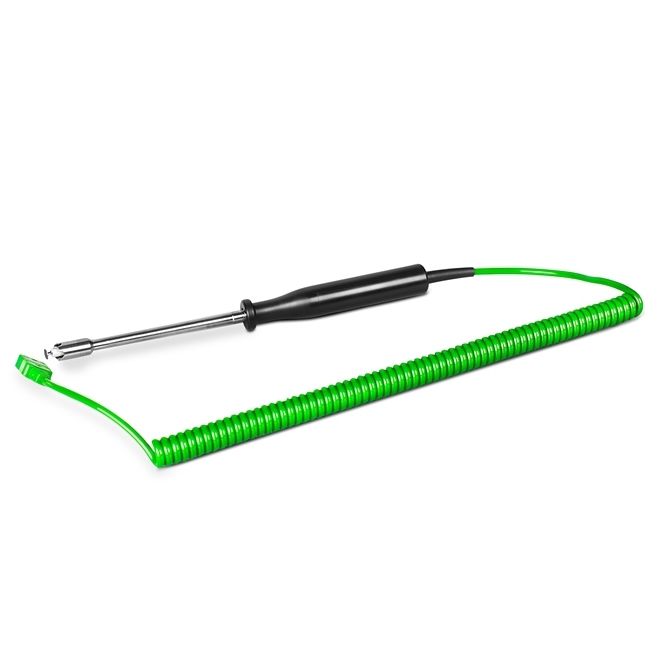

Stainless steel sheath with a moulded handle and 2 metres of coiled extension cable terminated in a miniature thermocouple plug.

Optional GM1312 General Purpose Digital Thermometer (K,J,T,E,N,R/S)

  • K, J, T, E, N, R/S modes.
  • 2 temperature modes: ° C, ° F and
  • One push button to switch between ° F/° C mode as well to switch between MAX/MIN/AVG
  • 2 temperature channels: T1 / T2
  • Differential temperature measurement
  • Overload display alert if input exceeds the selected measurement range
  • Comes with rubber holster that protects the meter from impact Portable and compact design
  • Resolution: 0.1° C or 0.1° F. Accuracy: ± 0.4° C ± 1%
  • Auto Power Shut Off
  • Switchable ° C or ° F or K
  • Ambient Operating Range: 0-40° C (32-104° F)
  • Relative Humidity: 0-70% RH
  • Power supply: Supplied with 3 x AAA Battery

General DescriptionSurface temperature spring loaded thermocouple with copper disc tip
Thermocouple TypeK
CalibrationIEC
Max. Temperature+600°C
DimensionsProbe 4.7mmØ x 63mm long stem, Ø8 x 17mm tip with Ø4.5mm copper disc
TipCopper disc tip

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.



Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.
