MicroCal 1 PLUS Thermocouple (Types K, J, T, R, N, S, E) Simulator & Thermometer

Change Currency

SKU
XE-3982-001
£192.00 £160.00
Lead TIme:
3 months
Weight:
1.00KG
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:

Please note: Lead time is currently around 3 months due to component supply delays

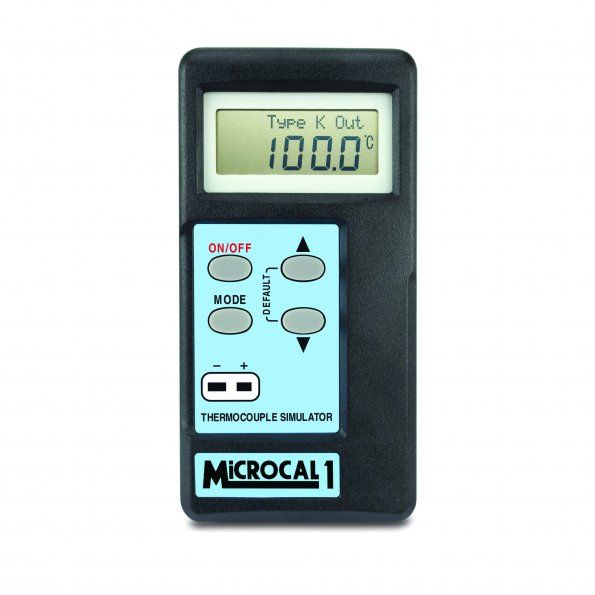

The MicroCal 1 Plus thermocouple simulator and thermometer helps ensure that the frequent checking of thermometer accuracies is a routine operation. The calibrator is designed to simulate a chosen temperature to test thermocouple type K, J, T, R, N, S and E thermometers without the need for specialised equipment or conversion tables. The MicroCal 1 Plus calibrator both measures and simulates temperature.

The simulator features a custom 10mm LCD display with alpha-numeric display line to prompt the user when changing parameters. Selectable parameters include: °C/°F, auto power off - enable/disable, CJC - internal/external and display contrast adjustment.

An optional lead set is also available, that comprises of seven leads, one for each thermocouple type K, J, T, R, N, S and E. Each PVC lead is one metre long and incorporates two miniature thermocouple plugs.

Each MicroCal 1 Plus is supplied with a one metre PVC type K thermocouple lead with miniature connectors and a five point UKAS Certificate of Calibration which indicates deviations from standards at the various points.



Thermocouple Type Range
K -200 to 1372°C
J -200 to 1200°C
T -270 to 400°C
R 0 to 1768°C
N -200 to 1300°C
S 0 to 1768°C
E -140 to 1000°C
General Description Type K with threaded pot & tails in 316 stainless steel
Cable Length 100mm
Cable Type PFA insulated twin twisted ANSI (Temp -75 TO +250°)
Core / Strands 7/0.2mm
Element/hot junction Single element, junction insulated or grounded from sheath
Max. Temperature +650°C
Min. Temperature -40°C
Probe Diameter 0.81mm
Probe Length 100, 150, 250 mm
Pot Type M8 x 1.0mm fine pitch threaded pot seal (200°C)
Sensor Type Mineral Insulated
Sheath Material Inconel Sheath
Standards Met In accordance with ANSI MC96.1
Thermocouple Type K
Termination Type Bare Tails
