Standard Quick Wire Thermocouple Connector Plug FSTC-CU-MQ Type Cu

Change Currency

SKU
XE-1681-001
£6.40 £5.33
  • Buy 2 - 9 for £4.84 £4.03 each and save 24%
  • Buy 10 - 99 for £4.10 £3.42 each and save 36%
  • Buy 100+ for £3.86 £3.22 each and save 40%
Lead Time:
In-Stock
Weight:
22g
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

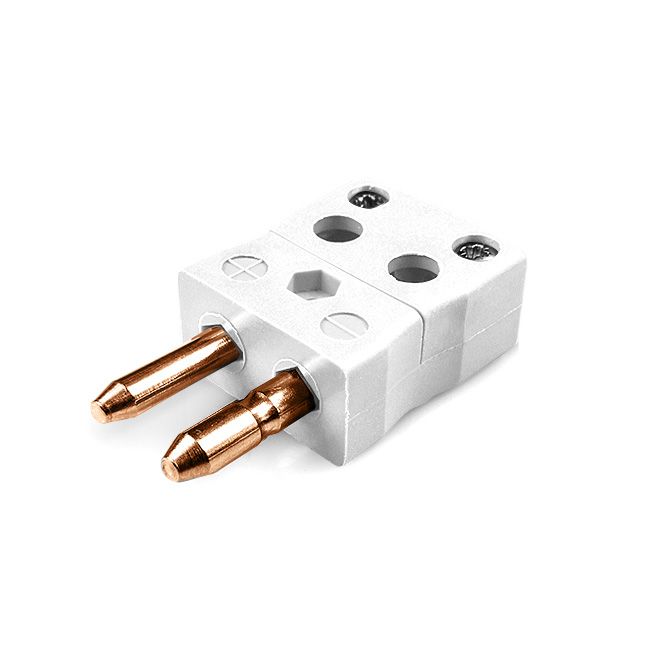

Standard Quick Wire Thermocouple Connector Plug FSTC-CU-MQ Type CU

Easy 'jab-in' connection for rapid termination, just push wire in and tighten screw. Contacts are polarised to prevent incorrect connection

Specifications

General Description Easy 'jab-in' connection for rapid termination, contacts are polarised to prevent incorrect connection.
Thermocouple Type IEC, ANSI, JIS Type CU
Connector Type Quick Wire Plug
Connector Size Standard
Colour White
Max. Temperature 220°C
Pins Solid Round Pins
+Positive Contact Copper
-Negative Contact Copper
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation Standard Quick Wire Thermocouple Connector Plug From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
