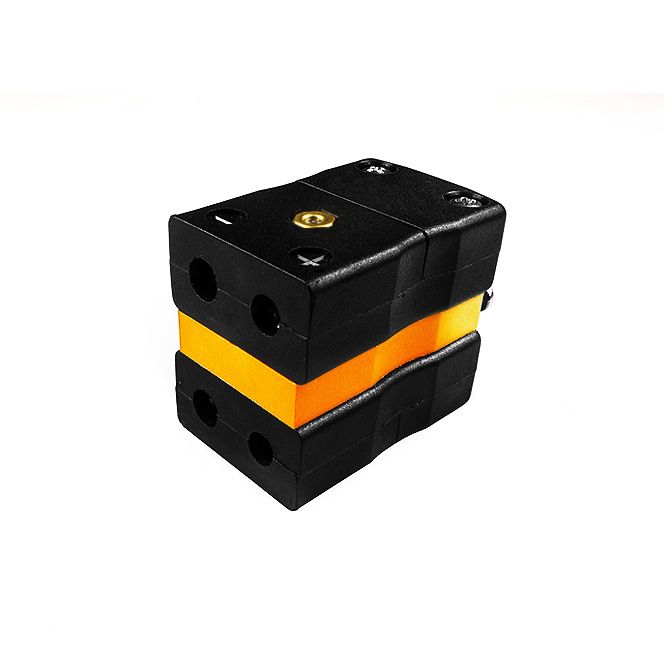

Standard Thermocouple Connector Duplex Socket AS-N-FD Type N ANSI

Change Currency

SKU
XE-1587-001
£11.99 £9.99
  • Buy 2 for £9.58 £7.98 each
  • Buy 10 for £8.71 £7.26 each
  • Buy 50 for £7.79 £6.49 each
Lead Time:
In-Stock
Weight:
40g
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

Standard Thermocouple Connector Duplex Socket AS-N-FD Type N ANSI

Rugged glass filled polyester bodies. Contacts are polarised to prevent incorrect connection

Specifications

General DescriptionRugged glass filled polyester bodies, suitable for industrial applications.
Thermocouple TypeN ANSI
Connector TypeDuplex Plug
Connector SizeStandard
ColourOrange
DimensionsSee Schematic Drawing (Product Literature Tab)
Max. Temperature220°C
+Positive ContactNickel / Chromium / Silicon
-Negative ContactNickel Silicon
Standards MetBS EN 50212:1997. RoHS

3D Animation

3D Animation Standard Thermocouple Connector Duplex Socket from Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
