Status HTR200 Miniature In Head RTD/ Slidewire Temperature Transmitter

Change Currency

SKU
XE-6282-001
£87.72 £73.10
Lead Time:
7 - 10 working days
Weight:
500g
Tariff Code:
90330000
Manufacturer:
Status
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
  • MAA TYPE HEAD WITH INTEGRAL TRANSMITTER
  • INPUT: RTD, SLIDE WIRE, RESISTANCE
  • USER LINEARIZATION
  • PC PROGRAMABLE
  • (4 to 20) mA OUTPUT

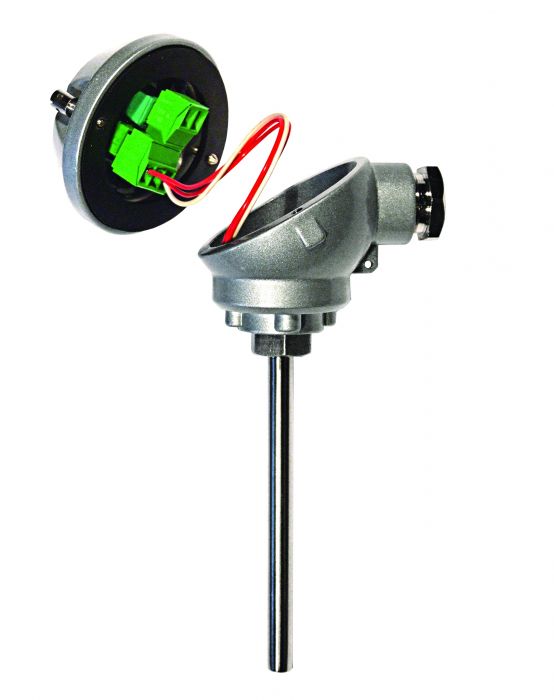

The HTR200 is a cost effective “smart” transmitter integrated into an MAA type connection head that accepts resistance signals including RTD sensors and converts them to a standard industrial (4 to 20) mA transmission signal over a user programmed range. There are two versions available with M10 probe connections.


Its small size (52mm swing diameter), allows for installations where space is critical and being 60% lighter than a conventional transmitter installed in a KNE type alloy head, means smaller stem diameter and head threads can be used in the temperature probe.

FEATURE HIGHLIGHTS


SENSOR REFERENCING (Temperature mode)
The HTR200 sensor referencing via the Windows based USBSpeedlink software allows for close matching to
a known reference sensor eliminating possible sensor errors. Link To Product configuration software


CUSTOM LINEARISATION
As standard the HTR200 has all common RTD sensors available from its software library. Additionally, the HTR200 can be programmed with up to 22-point custom linearization for ohms and slidewire inputs.


SENSOR BURN OUT DETECTION (Temperature mode)
If a sensor wire is broken or becomes disconnected the HTR200 output will automatically go to its user defined level (upscale or downscale) or a pre-set value.


STABILITY
The HTR200 integral transmitter incorporates the latest digital technology to ensure accurate, low drift performance.

USB configuration kit

The USB configuration kit provides a link between the USB port of your PC or Lap-Top and all of our products that use loop communication.  The product, as well as the configurator, is powered during configuration from your PC's USB port so no additional power supply is needed during the configuration process.

USB Configuration Kit

USB Configuration Kit
