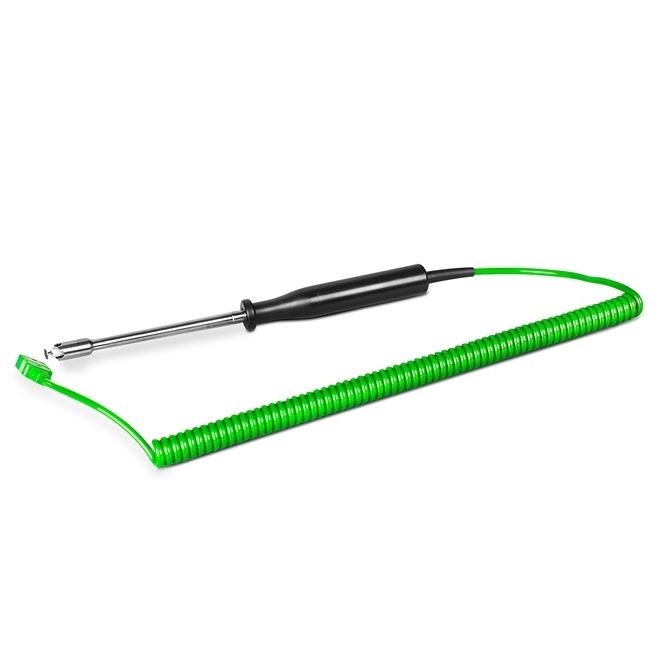

Handheld Spring Loaded Thermocouple with Copper Disc Tip - Type K

Change Currency

£54.40 £45.33
Lead Time:
7 - 10 working days
Tariff Code:
Country of Manufacture:
RoHS Compliant:
Product Compliance:

Stainless steel sheath with a moulded handle and 2 metres of coiled extension cable terminated in a miniature thermocouple plug.

Optional GM1312 General Purpose Digital Thermometer (K,J,T,E,N,R/S)

  • K, J, T, E, N, R/S modes.
  • 2 temperature modes: ° C, ° F and
  • One push button to switch between ° F/° C mode as well to switch between MAX/MIN/AVG
  • 2 temperature channels: T1 / T2
  • Differential temperature measurement
  • Overload display alert if input exceeds the selected measurement range
  • Comes with rubber holster that protects the meter from impact Portable and compact design
  • Resolution: 0.1° C or 0.1° F. Accuracy: ± 0.4° C ± 1%
  • Auto Power Shut Off
  • Switchable ° C or ° F or K
  • Ambient Operating Range: 0-40° C (32-104° F)
  • Relative Humidity: 0-70% RH
  • Power supply: Supplied with 3 x AAA Battery



General Description Surface temperature spring loaded thermocouple with copper disc tip
Thermocouple Type K
Calibration IEC
Cable Length 2m Fully Extended
Cable Type Retractable Curly Thermocouple Lead - Polyurethane outer
Cable Termination Miniature Plug
Max. Temperature +600°C
Dimensions Probe 4.7mmØ x 63mm long stem, Ø8 x 17mm tip with Ø4.5mm copper disc
Tip Copper disc tip
