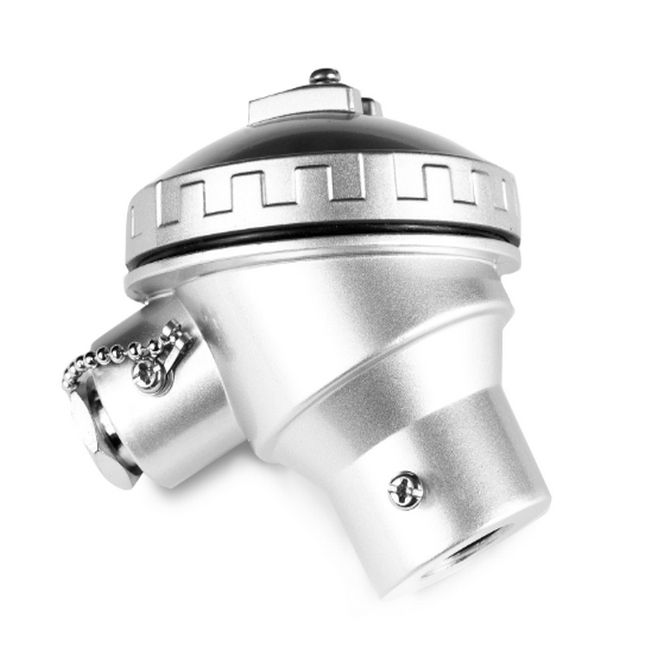

KNE Epoxy Painted Terminal Head

Change Currency

SKU
XE-3837-001
£14.09 £11.74
Lead Time:
In-Stock
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Many alternative types of terminal heads are available to meet the requirements of various applications.

Variations exist in size, material, accommodation, resistance to media, resistance to fire or even explosion and in other parameters.

KNE Epoxy Painted Terminal Heads offer robust protection for electrical connections, with the added benefit of an epoxy coating that enhances durability and corrosion resistance.

These terminal heads are ideal for a variety of applications, including industrial automation, chemical processing, food and beverage, and outdoor installations.

Proper installation and regular maintenance ensure reliable performance and long-term protection of sensitive electrical components.

Specifications

Head Type KNE Standard Head
Material Aluminium Epoxy painted
Cable Entry M20 x 1.5mm
Fixing (Centres) 33mm & 40mm
Max. Temperature 170°C
IP Rating IP67 rated
Process Entry ½” BSPP
Cap Retaining Type Screw cap and retaining screw
