Type K PFA Insulated Flat Pair Thermocouple Cable / Wire (ANSI)
Change Currency

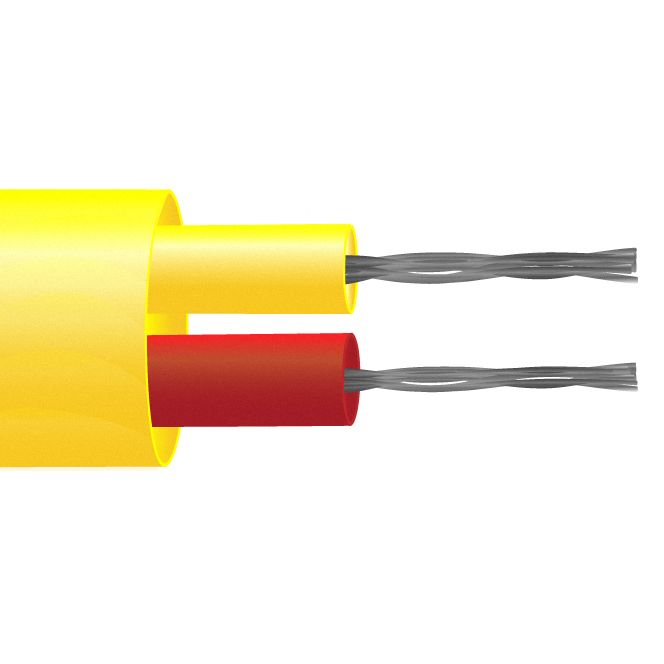

Type K PFA Insulated Flat Pair Thermocouple Cable / Wire (ANSI)
PFA Teflon® insulated flat pair. PFA Teflon® has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam & pressure.
Specifications
| General Description | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Cable Length | 10, 25, 50, 100m |
| Cable Type | Single pair of PFA insulated conductors, laid flat with PFA jacket |
| Core / Strands | 1/0.2mm, 1/0.3mm, 1/0.5mm,7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Yellow |
| + Colour | Yellow |
| - Colour | Red |
| Drain Wire | No |
| Insulation Material | PFA Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperature | +260°C |
| Min. Temperature | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Standards Met | Colour code (cores & jacket) to ANSI MC96.1 |
| Thermocouple Type | K |
| Tolerance | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
