Type K PFA Insulated Flat Pair Thermocouple Cable / Wire (IEC)

PFA Teflon® insulated flat pair. PFA Teflon® has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam & pressure.

Specifications

General Description Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments.
Cable Length 5m, 10m, 25m, 50m, 100m

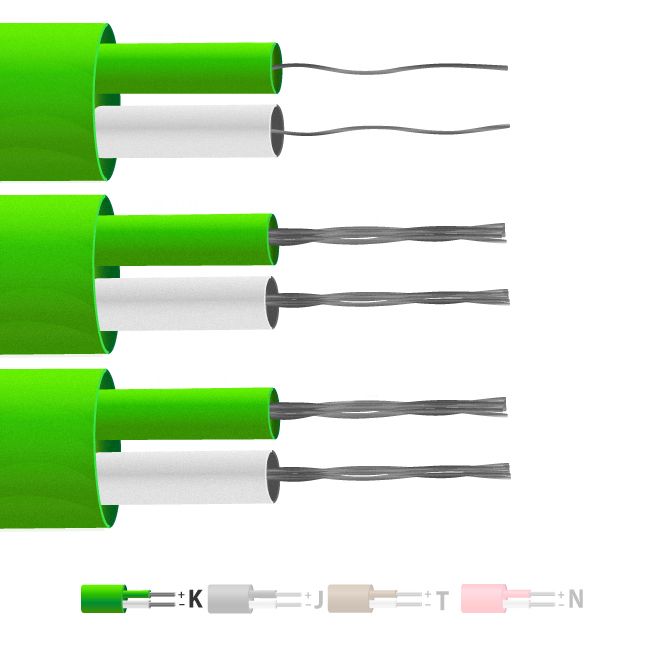

Cable Type Single pair of PFA insulated conductors, laid flat with PFA jacket
Core / Strands 1/0.2mm, 1/0.315mm, 7/0.2mm, 1/0.508mm
Conductor Cross Section 1/0.315 (mm2) 0.078
Conductor Cross Section 1/0.508 (mm2) 0.203
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Green
+ Colour Green
- Colour White
Drain Wire No
Insulation Material PFA Insulated
Loop Resistance 1/0.315 (Ohms per combined metre) 12.8
Loop Resistance 1/0.508 (Ohms per combined metre) 4.9
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +260°C
Min. Temperature -75°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type K
Tolerance Class 1

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
