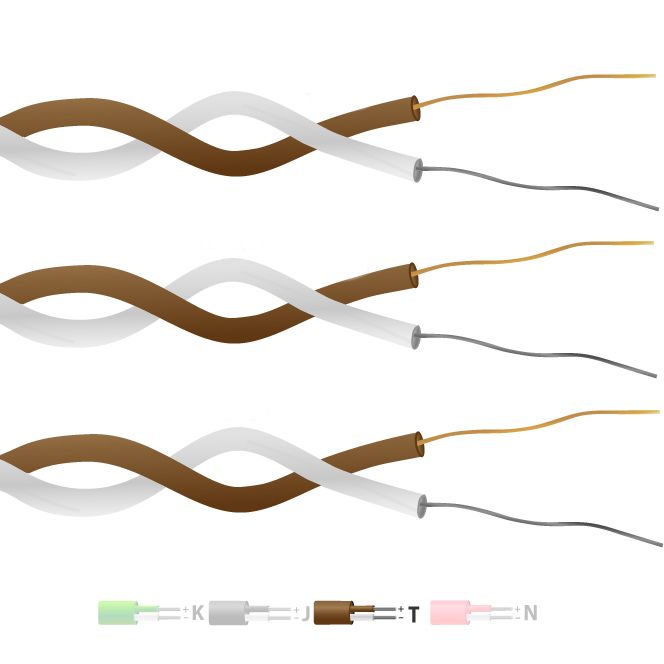

Type T PTFE Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)

PTFE insulated twin twisted pair. PTFE has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids.



General Description Resistant to oils, acids adverse agents and fluids. Good mechanical strength and flexibility.
Cable Length 10m, 25m, 50m, 100m
Cable Type Twin twisted pair for extending or making simple thermocouples
Core / Strands 1/0.2mm , 1/0.315mm, 7/0.2mm
Conductor Cross Section 1/0.2 (mm2) 0.032
Conductor Cross Section 1/0.315 (mm2) 0.078
Conductor Cross Section 7/0.2 (mm2) 0.219
+ Colour Brown
- Colour White
Drain Wire No
Insulation Material PTFE insulated
Loop Resistance 1/0.2 (Ohms per combined metre) 16.2
Loop Resistance 1/0.315 (Ohms per combined metre) 6.5
Loop Resistance 7/0.2 (Ohms per combined metre) 2.3
Max. Temperature +260°C
Min. Temperature -75°C
+ Conductor Copper
- Conductor Constantan
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type T
Tolerance Class 1

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
