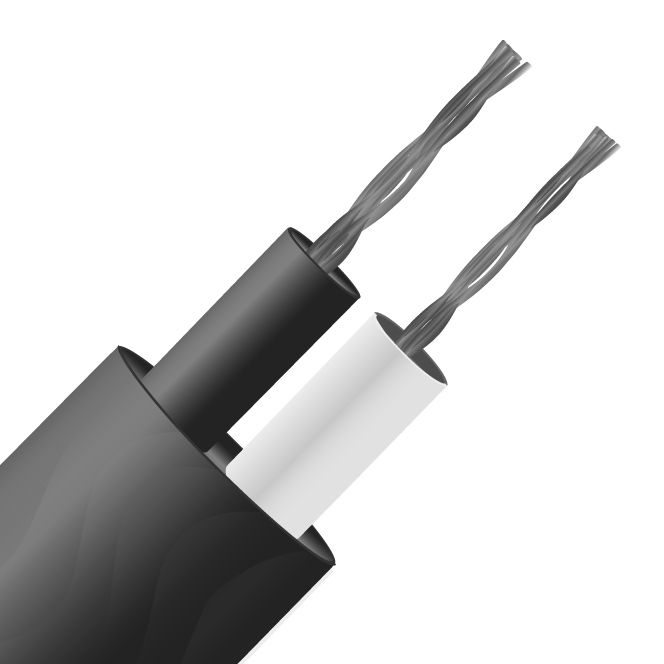

Silicone Rubber Insulated Thermocouple Cable / Wire (IEC) Type J

Change Currency

SKU
XE-2165
£15.61 £13.01
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
RoHS Compliant:
Product Compliance:

Good electrical and mechanical properties, highly flexible, resistant to oils, acids and other adverse fluids. Good heat resistance to 200°C although not suitable for direct use in high pressure steam applications.

Specifications

General Description Good electrical and mechanical properties, highly flexible, resistant to oils, acids and other adverse fluids. Good heat resistance to 200°C although not suitable for direct use in high pressure steam applications.
Cable Length 10m, 25m, 50m, 100m
Core / Strands 7/0.2mm
Outer Colour Black
+ Colour Black
- Colour White
Drain Wire No
Insulation Material Silicone rubber insulated 7/0.2mm conductors, twisted together with silicone rubber outer jacket
Max. Temperature +200°C
Min. Temperature -40°C
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type J
Tolerance Class 2 to IEC-584
