Type K PFA Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)

Change Currency

SKU
XE-2122
£5.26 £4.38
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

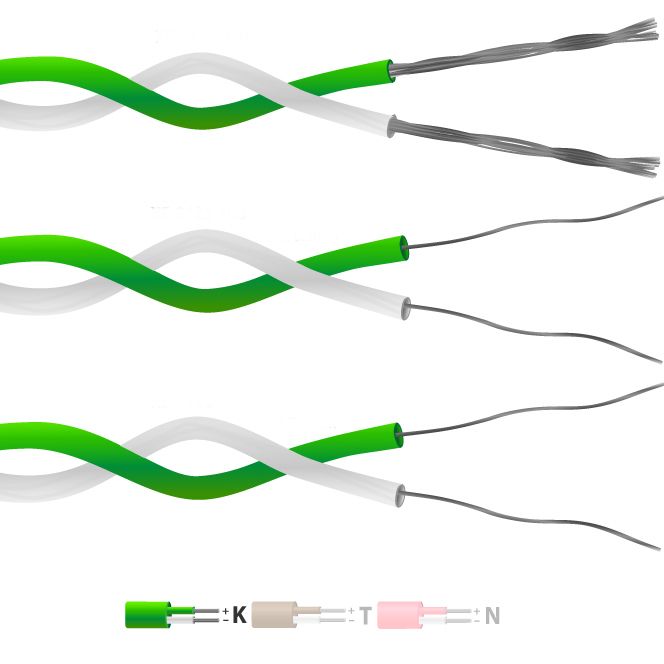

Type K PFA Insulated Twin Twisted Pair Thermocouple Cable / Wire (IEC)

PFA Teflon® twin twisted pair for extending or making simple thermocouples. PFA Teflon®has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam & pressure.

Specifications

General Description Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. PTFE better for steam/elevated pressure environments.
Cable Length 10m, 25m, 50m, 100m
Cable Type Single pair of PFA insulated conductors twisted together
Core / Strands 1/0.2mm, 7/0.2mm, 1/0.3mm, 1/0.508mm
Conductor Cross Section 1/0.2 (mm2) 0.032
Conductor Cross Section 1/0.315 (mm2) 0.078
Conductor Cross Section 1/0.508 (mm2) 0.203
Conductor Cross Section 7/0.2 (mm2) 0.219
+ Colour Green
- Colour White
Drain Wire No
Insulation Material PFA Teflon®
Loop Resistance 1/0.2 (Ohms per combined metre) 31.8
Loop Resistance 1/0.315 (Ohms per combined metre) 12.8
Loop Resistance 1/0.508 (Ohms per combined metre) 4.9
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +260°C
Min. Temperature -75°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen No
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type K
Tolerance Class 1

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
