Type K PVC Insulated Mylar Screened Thermocouple Cable / Wire (IEC)

Change Currency

SKU
XE-2112
£14.28 £11.90
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

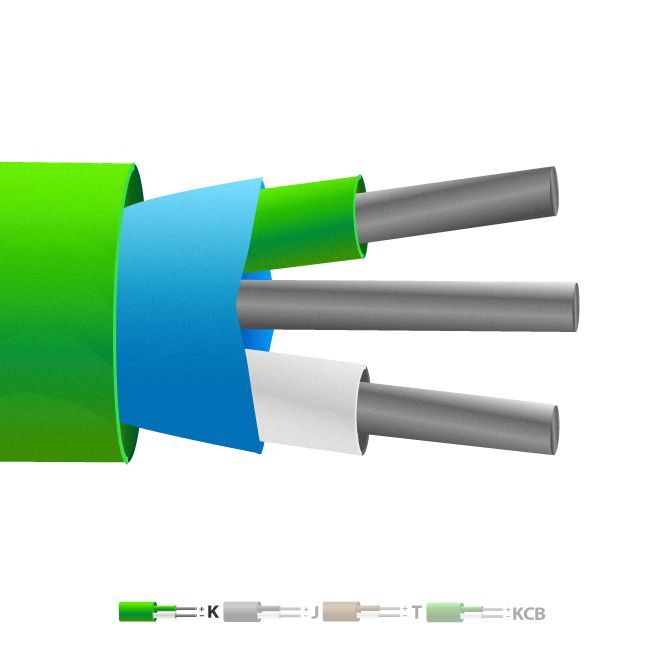

Type K PVC Insulated Mylar Screened Thermocouple Cable / Wire (IEC)

Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.



General Description Good general purpose insulation for 'light' environments. Waterproof and very flexible.
Cable Length 10m, 25m, 50m, 100m, 200m
Cable Type Twisted cores & screened construction for reduced electrical noise
Core / Strands 7/0.2mm
Conductor Cross Section 7/0.2 (mm2) 0.219
Outer Colour Green
+ Colour Green
- Colour White
Drain Wire Yes
Insulation Material PVC Insulated with a mylar screen
Loop Resistance 7/0.2 (Ohms per combined metre) 4.5
Max. Temperature +105°C
Min. Temperature -10°C
+ Conductor Nickel Chromium
- Conductor Nickel Aluminium
Screen Yes
Screen Type Mylar
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type K
Tolerance Class 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
