Miniature Quick Wire Connector Thermocouple Plug IM-K-MQ Type K IEC
Change Currency
- Buy 2 - 9 for £3.20 £2.67 each
- Buy 10 - 99 for £2.74 £2.28 each
- Buy 100+ for £2.57 £2.14 each

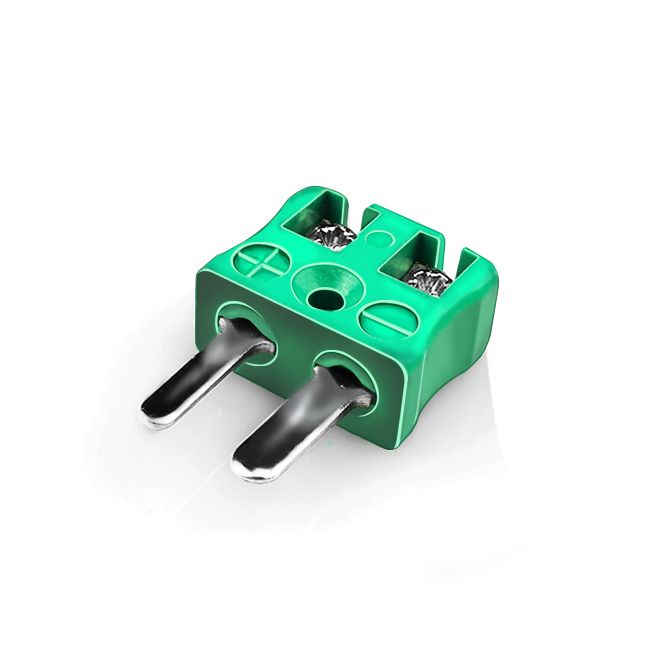

Miniature Thermocouple Connector Quick Wire Plug IM-K-MQ Type K IEC
Miniature connector with flat plug pins. Easy jab-in connection for rapid termination. Just push-in wire & tighten screw.
Specifications
| General Description | Easy jab-in connection for rapid termination. |
|---|---|
| Thermocouple Type | K IEC |
| Connector Type | Quick Wire Plug |
| Connector Size | Miniature |
| Colour | Green |
| Max. Temperature | 220°C |
| Pins | Flat Pins |
| +Positive Contact | Nickel Chromium |
| -Negative Contact | Nickel Alloy |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation of Miniature Quick Wire Plug From Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
3D CAD models provide accurate representations of our thermocouple connectors, allowing you to import them directly into your CAD software to check fit, orientation and clearances before finalising a design.
Whether you're designing a panel, enclosure or complete system, our STEP files help reduce development time, avoid costly design changes, and ensure our connectors integrate smoothly into your application.
