General Purpose Pt100 Silicone Rubber Lead - Type RTD / PRT

General Purpose Pt100 Silicone Rubber Lead - Type RTD / PRT

Details

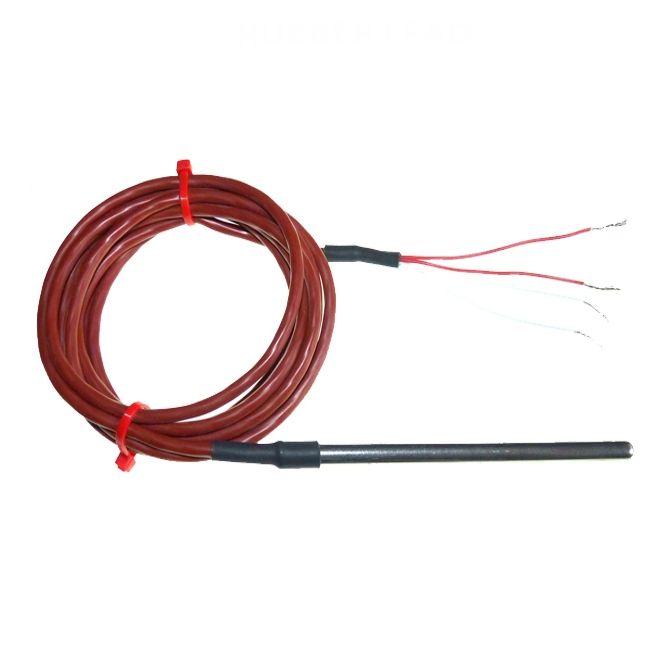

General Purpose Pt100 Silicone Rubber Lead - Type RTD / PRT

  • Heavy Duty Pt100 Probe to IEC751
  • Suitable for general purpose industrial & commercial use
  • Class B, 4-wire connection
  • Rigid 316 stainless steel sheath, 6.0mm diameter
  • Tough silicone rubber insulated lead, 2 metres long
  • Sensor temperature rating -50°C to +200°C

Specifications

  • Sensor type: Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire
  • Construction: 6.0mm diameter 316 stainless steel sheath.
  • Probe temperature range: -50°C to +200°C
  • Extension cable: 2 metres flexible silicone rubber insulated, 7/0.2mm
  • Termination: 4-wire tails – allows connection to any PT100 instrument 2, 3 or 4 wire

Probe Diameter         Probe Length         Cable Length         Order Number
6mm                              50mm                       2 metres                   XE-3630-001
6mm                              100mm                     2 metres                   XE-3631-001

GBP EUR USD JPY
Excl. VAT: £37.09 Incl. VAT: £44.51

* Required Fields

Labfacility Part No:
XE-3630
Lead Time:
Select Options
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:

Information - Need Calibration? Call us on +44 (0) 1243 871280
