Lascar EL-USB-1, Temperature Data Logger

Change Currency

SKU
XE-3973-001
£47.99 £39.99
Lead Time:
In-Stock
Weight:
300g
Tariff Code:
90259000
Manufacturer:
Lascar
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
FOR POSTAGE AND DELIVERY TERMS:

USB Temperature Data Logger, IP67 rated, supplied with configuration software

  • USB temperature data logger
  • Configuration software
  • 2 Settable alarm thresholds
  • LEDs indicate logger status
  • IP67 protection
  • Ideal for use in the healthcare industry where guidelines state that any area that stores drugs must have temperature records.

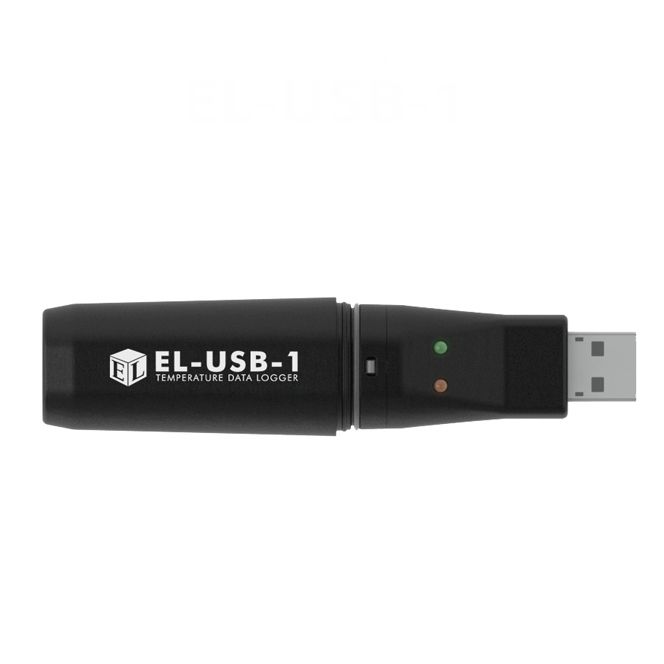

The EL-USB-1 is a USB temperature data logger with a measurement range of -35 to +80°C (-31 to +176°­­F). The data logger can store up to 16,382 readings and is supplied with a long-life replaceable lithium battery, allowing the unit to log data continually for at least one year (depending on logging rate and temperature). The status of EL-USB-1 is indicated by flashing red, green and orange LEDs. The data logger is protected against moisture to IP67 standard when the protective cap is fitted.

Data logger configuration software is supplied, allowing the user to easily set-up the data logger. Selectable parameters include logging rate, measurement units, high & low alarms and start-time. The logged data stored in EL-USB-1 is downloaded via the configuration software. Once downloaded data can be graphed, printed or exported to other applications.

EasyLog USB is compatible with the following 32bit and 64bit operating systems (other operating systems
are currently not supported):

  • Microsoft Windows 7
  • Microsoft Windows 8.1
  • Microsoft Windows 10 (32bit and 64bit)

The EL-USB-1 is suitable for a wide variety of applications, these include:

  • Pharmaceutical fridge monitoring
  • Transportation
  • Food & drink
  • Building & site monitoring
  • HVAC

For Veterinary and Vaccine monitoring, Lascar offer a wide range of products for a variety of application, including:

EL-USB-TP-LCD thermistor probe data logger with a glycol bottle thermistor probe for users who need a complete vaccine temperature monitoring system.

EL-WiFi-21CFR-VAC - suitable for a wide variety of applications particularly those which require 21CFR complaint data collection and management including:

  • Vaccine Storage
  • Blood & Blood Component Storage



General Description This standalone data logger measures and stores more than 16,000 temperature readings over a -35 to +80°C (-31 to +176°F) range with a resolution of 0.5°C (1°F).
Type Temperature Data Logger with USB and Display
Accuracy ±1°C (±2°F)
Input / Ranges -35 to +80°C / -31 to + 176°F
Dimensions 99 x 25 x 23mm (3.89 x 0.98 x 0.90”)
Max. Temperature 80°C (176°F)
Min. Temperature -35°C (-31°F)
Power Consumption 3 years battery life (at 25°C and 1 minute logging rate)
Power Supply BAT 3V6 1/2AA (included)
Maintenance Logging Rate: User selectable between 10 seconds and 12 hours
Compatible Operating Systems EasyLog USB is compatible with the following 32bit and 64bit operating systems (other operating systems are currently not supported): Microsoft Windows 7 / Microsoft Windows 8.1 / Microsoft Windows 10 (32bit and 64bit)
