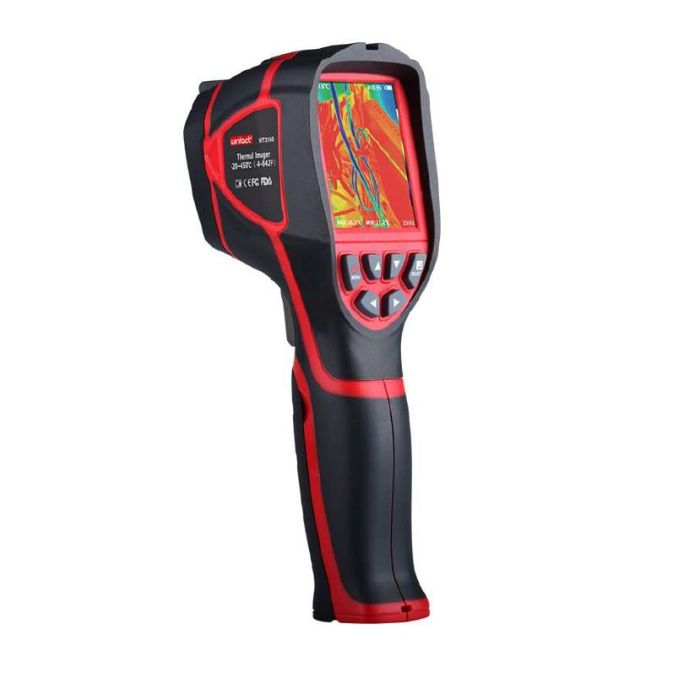

Handheld Thermal Imaging Camera
Change Currency
This thermal imager is designed for non-contact detection and calculation of apparent surface temperature. The thermal image creation is based on the temperature variation.
Provides fast and accurate readings for most surface temperature measurements with a TFT colour LCD display & Imager Video format.
Built for tough work environments, this high-performance, fully radiometric imager is ideal for troubleshooting electrical systems, electro-mechanical equipment, process equipment, HVAC/R equipment and others.
Features
- With a compact design, the product is easy to operate and accurate. It is ideal for applications involving electric power, electronic manufacturing, Industrial inspection and others.
- With a visible light camera, the thermal images and visible images are stored in the device and can be read through a USB connection.
- The radiation coefficient may be adjusted to increase the measurement accuracy of objects with half reflection surface.
- The highest temperature and lowest temperature cursor guides the users to the areas with the highest and lowest temperatures of the thermal images.
- User selectable colour palette.
- Video recording function.
- Analysis software.
Specifications
Model | WT-3090 |
---|---|
General Description | Thermal Imaging Camera |
Accuracy | +/12% -15°C to 550°C |
Resolution | 120x90 |
Wavelength Range | 8-14 μm |
Thermal Imaging Sensitivity | ≤ 40mK (@25°C, F#1.0) |
Display Type | 2.8" full-angle TFT screen |
Display Resolution | 300,000 pixel |
Storage Card | Built-in 8GB (available storage is approx 6.62 GB) |
Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
Operating Temperature | -20°C to 50°C |
Weight | 0.5 KG |
Power Consumption | 2-3 hours operating time |
Power Supply | Built in recharcheable 18650 battery |
