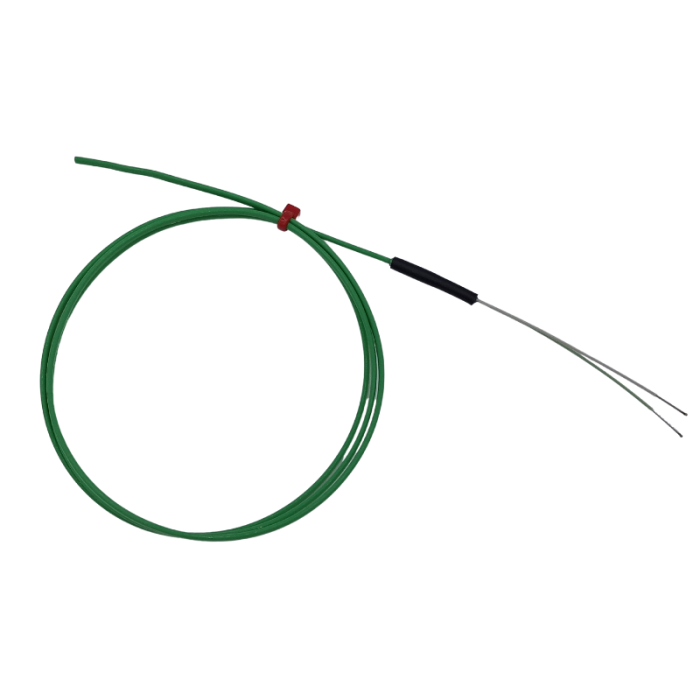

Hermetically Sealed Wire Thermocouple IEC

Change Currency

SKU
XE-6350
£23.36 £19.47
Lead Time:
Select options
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
  • Hermetically sealed airtight tip
  • Waterproof & suitable for insertion into liquids
  • Oil & Chemical resistant PFA insulation
  • For use in temperatures ranging from -75 to +260 Degree C
  • Electrically insulated tip tested to 1.0Kv as standard (can be tested at higher voltages)
  • Flexible 7/0.2mm stranded conductors (24AWG)
  • 1.5 x 2.3mm nominal wire diameter
  • Available with standard tails or mini thermocouple plug terminations

An IP67 wire thermocouple that is hermetically sealed for use in corrosive or wet environments.

This versatile multi-purpose sensor has been specifically designed for use in and to protect against corrosion in harsh or wet environments. It has a quick response time and can be easily cleaned.

The impermeable PFA insulated flexible wire thermocouple provides exceptional resistance to oils, fluids, gases, and chemicals and is electrically isolated.

The thermocouple tip contains the beaded sensing connection, which is weld-sealed to give a continuous PFA coating along the entire length and provide an atmosphere that is airtight and moisture-proof.



Typical Applications

  • Pharmaceutical, Autoclaves and Sterilisation
  • Food & Catering
  • Environmental
  • R & D, temperature mapping and data acquisition



Specifications

General Description An IP67 wire thermocouple that is hermetically sealed for use in corrosive or wet environments
Sensor Type Hermetically sealed
Thermocouple Type K, J & T
Cable Length 1, 2 & 5m
Cable Type PFA Flat Pair insulation
Core / Strands 7/0.2mm (24 AWG)
Termination Type Miniature flat pin plug colour coded in accordance IEC 584 or bare tails
Max. Temperature +260°C
Min. Temperature -75°C
Tolerance Class 1
Standards Met IEC-584-3
IP Rating IP67
Important Information Pressure tested at 40 PSI as standard
