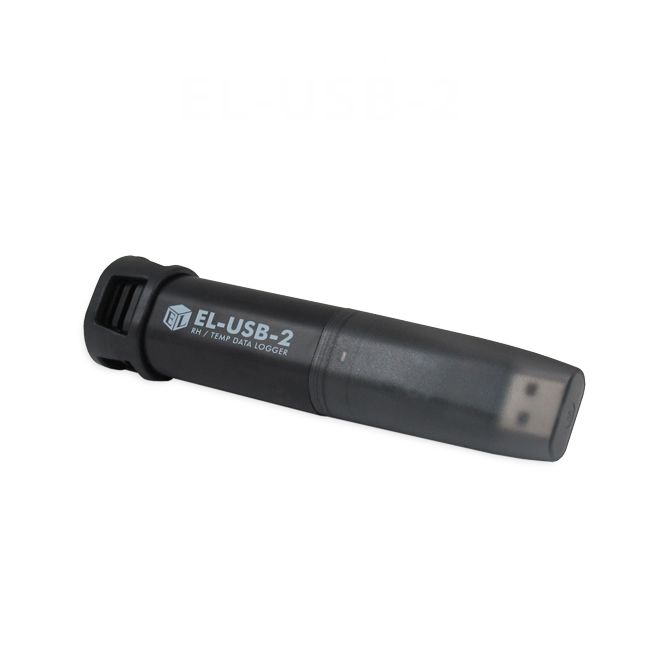

Lascar EL-USB-2, Humidity & Temperature Data Logger
Change Currency
Humidity & Temperature USB data logger designed to simplify and speed up the daily task of maintaining an accurate record of pharmaceutical fridge temperatures.
- Humidity/Temp USB data logger
- Configuration software
- User-selectable alarm thresholds
- LEDs indicate logger status
- IP67 protection
- USB software, compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10
This data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP, Vista and 7. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications.
The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust to IP67 standard when the plastic cap and seal are fitted.
The EL-USB-2 is suitable for a wide variety of applications, these include:
- Pharmaceutical fridge monitoring
- Environmental and weather monitoring
- Agricultural and livestock
- Food & drink
- Building & site monitoring
- HVAC
| General Description | This standalone data logger measures and stores over 16,000 temperature and humidity readings from -35 to +80°C (-31 to +176°F) and 0 to 100%RH range at a resolution of 0.5°C (1°F) and 0.5%RH. |
|---|---|
| Accuracy | Temp: 0.55°C (1.04°F) typical (5 to 60°C) Humidity: 2.25%RH typical (20 to 80%RH) |
| Dimensions | 108 x 25 x 22mm (4.25 x 0.98 x 0.86”) |
| Max. Temperature | 80°C (176°F) 100% RH |
| Min. Temperature | -35°C (-31°F) 0% RH |
| Power Consumption | Battery life: 3 years (at 25°C and 1 minute logging rate) |
| Power Supply | BAT 3V6 1/2AA (included) |
