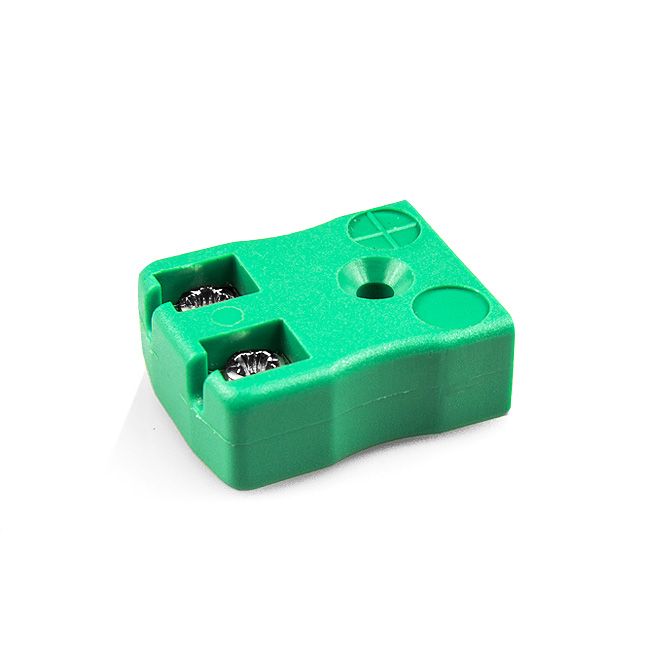

Miniature Quick Wire Thermocouple Connector Socket AM-R/S-FQ Type R/S ANSI

Change Currency

SKU
XE-1322-001
£4.08 £3.40
  • Buy 2 - 9 for £3.07 £2.56 each and save 25%
  • Buy 10 - 99 for £2.62 £2.18 each and save 36%
  • Buy 100+ for £2.45 £2.04 each and save 40%
Lead Time:
In-Stock
Weight:
5g
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Miniature Quick Wire Connector Thermocouple Socket AM-R/S-FQ Type R/S ANSI

Easy jab-in connection, just push in wire & tighten screw. Contacts are polarised to prevent incorrect termination.

Specifications

General Description Easy jab-in connection, just push in wire & tighten screw.
Thermocouple Type R/S ANSI
Connector Type Quick Wire Socket
Connector Size Miniature
Colour Green
Max. Temperature 220°C
+Positive Contact Copper
-Negative Contact Copper Alloy
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation of Miniature Quick Wire Socket From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
