Lascar EL-USB-4 - Current Data Logger with USB

Change Currency

SKU
XE-4044-001
£69.59 £57.99
Lead Time:
7 - 10 working days
Weight:
300g
Tariff Code:
90259000
Manufacturer:
Lascar
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

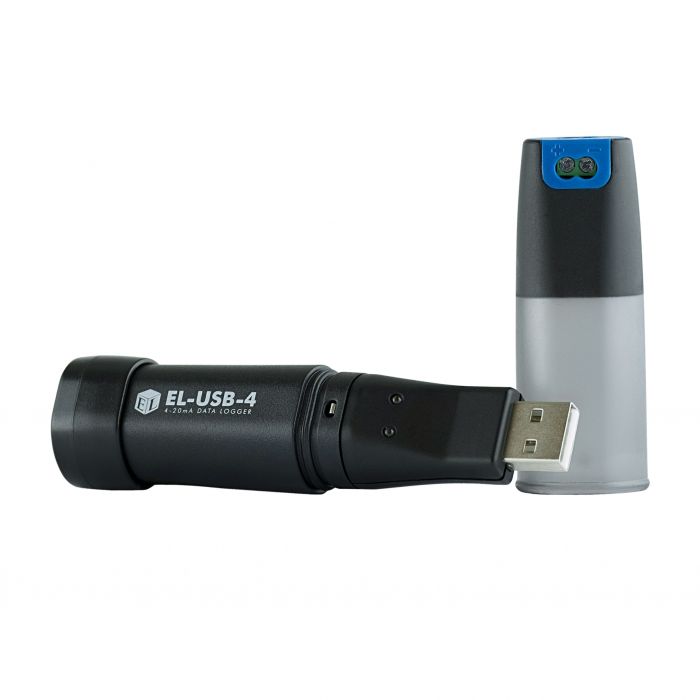

This standalone data logger measures more than 32,000 readings over a 4-20mA d.c. measurement range. The data logger is supplied with a cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.

EasyLog USB is compatible with the following 32bit and 64bit operating systems (other operating systems
are currently not supported):

  • Microsoft Windows 7
  • Microsoft Windows 8.1
  • Microsoft Windows 10 (32bit and 64bit)

The EL-USB-4 is suitable for Industrial applications.

General Description This standalone data logger measures more than 32,000 readings over a 4-20mA d.c. measurement range.
Type Current Data Logger with USB
Accuracy ±1%
Readings 32,510
Input / Ranges Measurement Range: 4 to 20mA d.c.
Power Consumption Battery Life 3 Years (at 25°C and 2 second logging rate)
Power Supply BAT 3V6 1/2AA (included)
Maintenance Logging Rate: User selectable between 1 second and 12 hours

EasyLog USB 3 & 4 Setup from Lascar Electronics

Learn about Lascar's standalone data logger. This product can record events, store 32,000 current loop readings over a 4-20mA d.c. measurement range.
