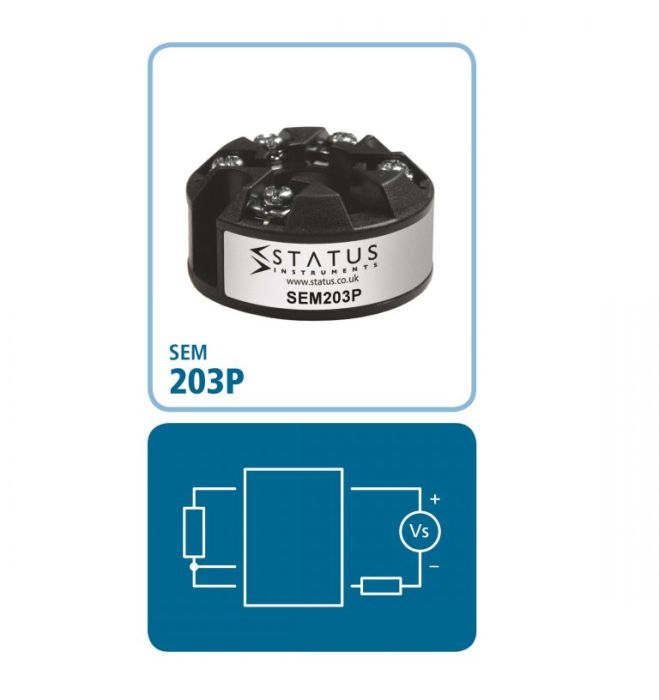

Status SEM203/P In-Head RTD Temperature Transmitter

Change Currency

SKU
XE-6225-001
£52.56 £43.80
Lead TIme:
5 working days
Weight:
500g
Tariff Code:
90330000
Manufacturer:
Status
Country of Manufacture:
GB
RoHS Compliant:

The RTD in-head mounted temperature transmitter connects to any standard pt100 resistance sensor and converts the linearised temperature to a (4 to 20) mA signal. The transmitter is a two wire device, and is fully configurable by the user, over a wide temperature range, with the aid of a simple push button. This design incorporates additional configuration menus, allowing the user to push button trim the transmitter output at both zero and span, ideal for trimming out sensor errors. The transmitters advanced circuitry guaranties high stability over the wide operating ambient temperature ranges experienced by head mounted devices.

One of the transmitters features is the program LED, which provides visual indication of sensor fault when in normal operation and is also used to guide the operator through the simple menus during configuration.

General Description Type K with threaded pot & tails in 316 stainless steel
Thermocouple Type K
Cable Length 100mm
Core / Strands 7/0.2mm
Max. Temperature +650°C
Min. Temperature -40°C
Probe Diameter 0.81mm
Probe Length 100, 150, 250 mm
Pot Type M8 x 1.0mm fine pitch threaded pot seal (200°C)
Sensor Type Mineral Insulated
Sheath Material Inconel Sheath
Standards Met In accordance with ANSI MC96.1
Tolerance Class1
Termination Type Bare Tails
