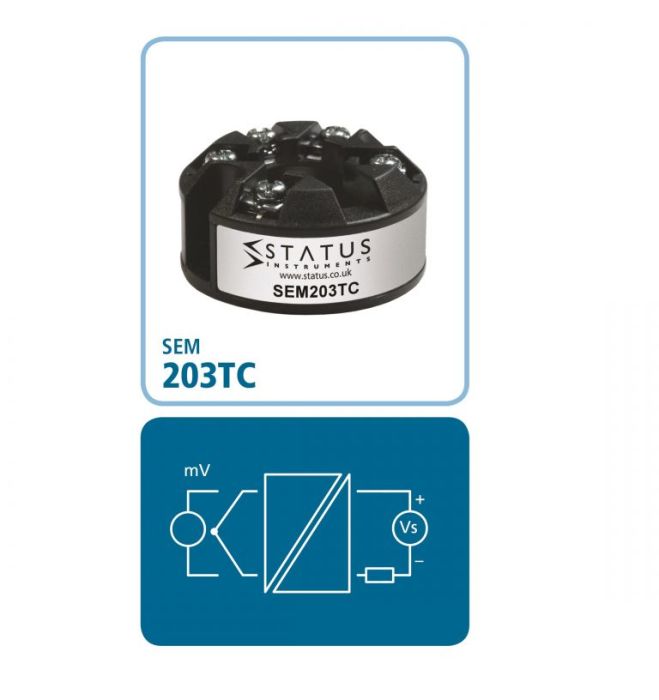

Status SEM203/TC Push Button Temperature Transmitter

Change Currency

SKU
XE-6226-001
£86.52 £72.10
Lead Time:
7 - 10 working days
Weight:
500g
Tariff Code:
90330000
Manufacturer:
Status
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

The push button temperature transmitter is a cost effective “smart” in head transmitter that accepts thermocouple temperature sensors and converts sensor output over a configured range to a standard industrial (4 to 20) mA transmission signal. A simple push button operation allows the user to select TC type, Burnout direction, Select fixed ranges and trim 4 and 20 mA points.

The in-head transmitter incorporates the latest digital technology to ensure accurate drift free performance.

The range the transmitter will be shipped with is default range of 0 to 1000 °C type K.

General Description Type K with threaded pot & tails in 316 stainless steel
Thermocouple Type K
Cable Length 100mm
Core / Strands 7/0.2mm
Max. Temperature +650°C
Min. Temperature -40°C
Probe Diameter 0.81mm
Probe Length 100, 150, 250 mm
Pot Type M8 x 1.0mm fine pitch threaded pot seal (200°C)
Sensor Type Mineral Insulated
Sheath Material Inconel Sheath
Standards Met In accordance with ANSI MC96.1
Tolerance Class1
Termination Type Bare Tails
