Pt100 Panel Selector Switches

Change Currency

SKU
XE-6315
£145.07 £120.89
Lead Time:
Select Options
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

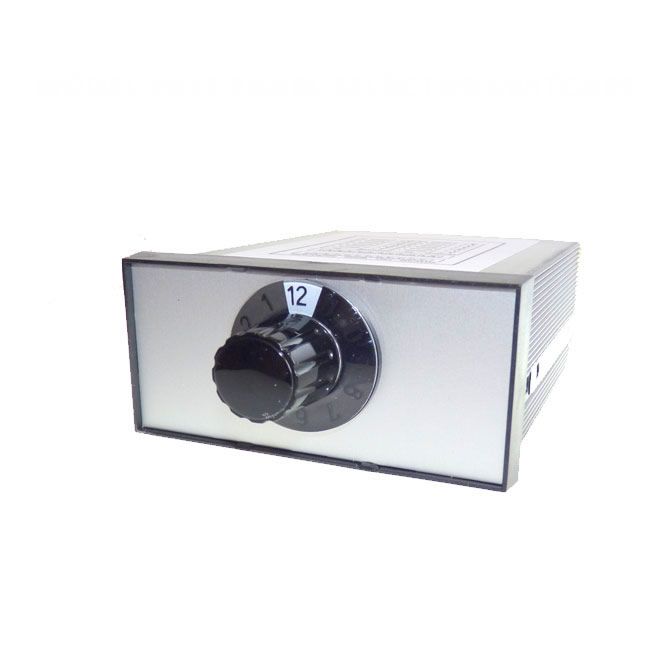

The 767S Panel Mounting DIN sized selector switches provide convenient, reliable selection of up to 12 thermocouple or RTD inputs (Pt100 3 or 4 wire option has only 6 inputs).
The front panel rotary switch provides easy selection and clear indication of the desired channel.

Inputs are via rear mounted terminals, with 1 metre of output lead for connection to a panel thermometer, etc.

Thermocouple models are wired in the appropriate extension wire for best possible accuracy (type R/S units use compensating wire).

A universal 12 way type for use with other thermocouple or sensor types, unit has 2 wire output termination enabling user
to fit their own choice of thermocouple or sensor cable (note: cable is not included).

SPECIFICATION

  • Input Connections - Barrier terminal Strip.
  • Output Connection - One metre of the appropriate cable (cable not included on the 'universal' model)
  • Input Selection - Multipole rotary switch.
  • Dimensions - DIN size bezel 48mm high x 96mm wide. Depth 120mm behind panel.
  • Panel cutout - 45mm high x 92 mm wide.
  • Number of inputs: 12 (Pt100 3 or 4 wire option has only 6 inputs)
