0.75mm Diameter with Bare Tails – Insulated or Grounded

Change Currency

£25.46 £21.22

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
Country of Manufacture:
RoHS Compliant:
Product Compliance:

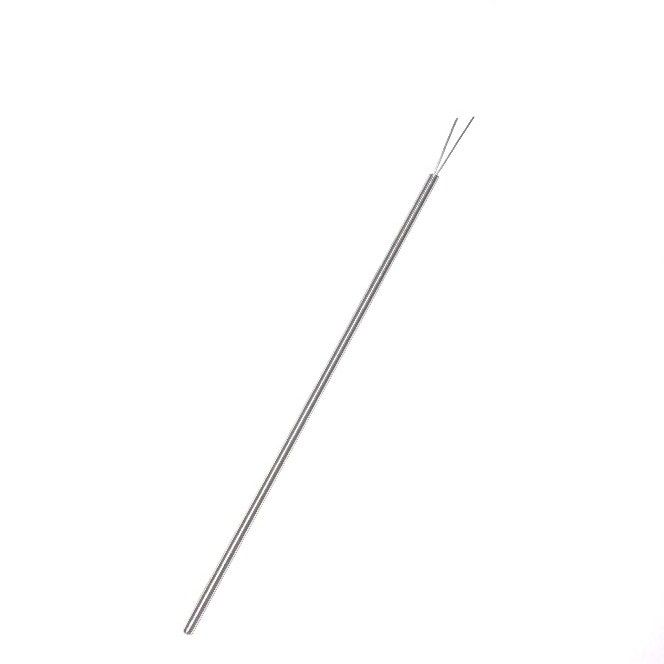

Fine diameter transition joint thermocouple probes

Thermocouple junctions are available as grounded, for fastest response time and lower cost; or insulated, for electrical isolation of the thermocouple from the sheath.

If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. .



Sensor Type Mineral Insulated
Thermocouple Type K
Element/hot junction Single element, junction insulated or grounded from sheath
Probe Diameter 0.75mm
Probe Length 100,150, 250mm
Sheath Material K - Stainless steel 316
Termination Type Fortfix sealed with = +VE leg 15mm long and -VE leg 10mm long
Max. Temperature +650°C
Min. Temperature -40°C
Tolerance Class 1
Standards Met In accordance with IEC 584
