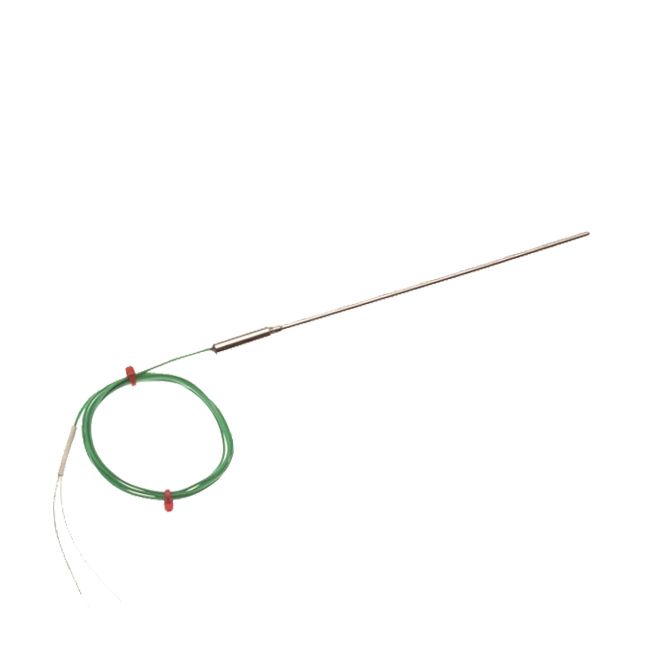

0.5mm Diameter Plain pot seal with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails – Insulated or Grounded
Change Currency
SKU
XE-0148
£32.24
£26.87
Fast Response Mineral insulated thermocouple in type K. Various lengths available terminating with an IEC miniature plug (220°C) for quick, simple connection.
For 0.25mm, 0.75mm & 0.81mm diameter and for Inconel® Alloy 600 sheath versions, please use our custom sensor forms to submit your requirements or email sales@labfacility.com / telephone our sales line 01243 871280
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. . |
|---|
Specifications
| General Description | Plain pot seal (200°C) with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails. |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction insulated or grounded from sheath |
| Probe Diameter | 0.5mm |
| Probe Length | 50, 100,150, 250mm |
| Sheath Material | K - Stainless steel 310 |
| Pot Type | Plain (+200°C) |
| Cable Length | 1M |
| Cable Type | PFA Teflon® insulated flat pair cable and tails (colour coded to IEC 584) |
| Core / Strands | 7/0.2mm |
| Termination Type | Bare Tails |
| Max. Temperature | K +650°C |
| Min. Temperature | K -40°C |
| Tolerance | Class 1 |
| Standards Met | In accordance with IEC 584 |
