0.81mm Diameter with Miniature IEC Plug – Insulated or Grounded

Change Currency

SKU
XE-0227
£30.37 £25.31

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

0.81mm Diameter with Miniature IEC Plug – Insulated or Grounded

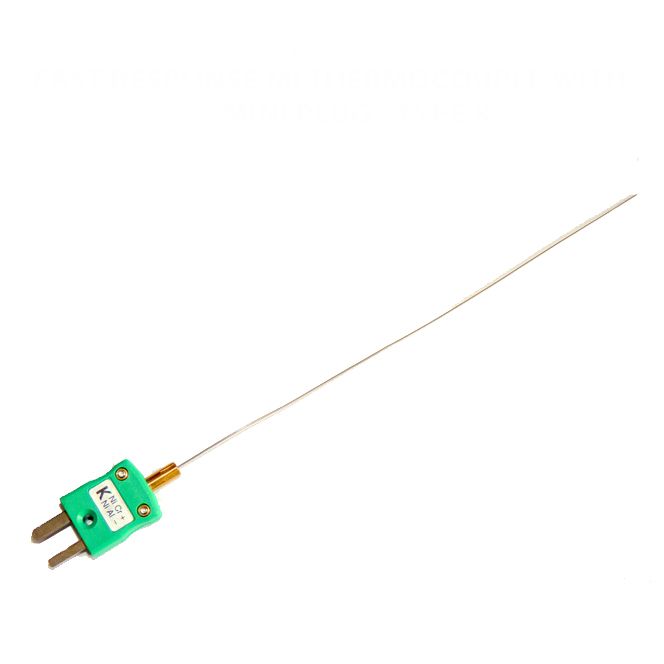

Type K with Miniature IEC Plug in 316 stainless steel

If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. .



Specifications

General Description Highly flexible, sheath can be bent/formed to suit many applications and processes
Sensor Type Mineral Insulated
Thermocouple Type K
Element/hot junction Single element, junction insulated or grounded from sheath
Probe Diameter 0.81mm
Probe Length 100, 150 or 250mm
Sheath Material Inconel Sheath
Termination Type Miniature flat pin plug, colour coded in accordance IEC 584
Max. Temperature +650°C. Plug Max. temperature range: 200°C
Min. Temperature -40°C
Tolerance Class 1
Standards Met IEC 584
Connector Type Plug
Connection Type Miniature
