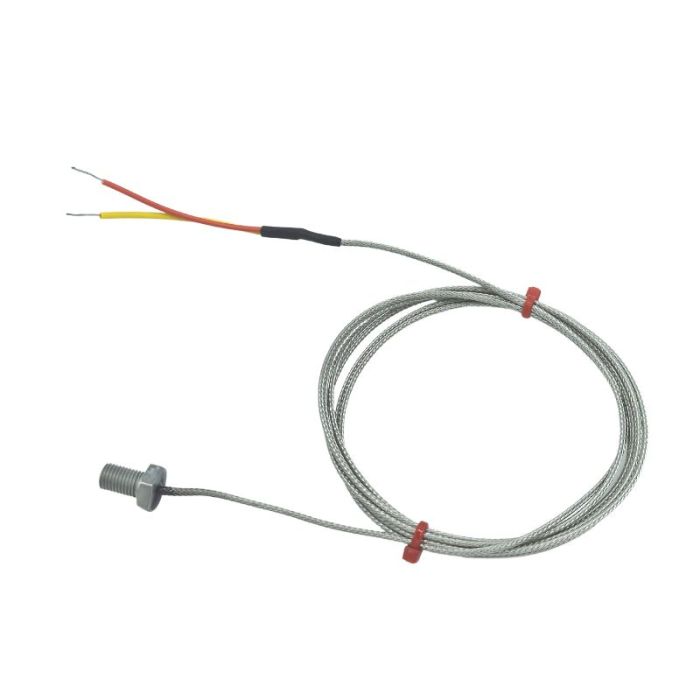

ANSI Bolt Thermocouple, Glassfibre Stainless Steel Over Braided Cable - Type K

Change Currency

SKU
XE-0584
£31.37 £26.14
Lead Time:
Select options
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Bolt sensors are generally screwed into the surface which normally increases the speed of response and sensitivity of the measurement. Suitable for use up to +250°C.

Specifications

Thermocouple Type K
Thermocouple Junction Bolts have grounded junctions
Cable Length 2M
Cable Type Glassfibre stainless steel over braided cable
Cable Termination Bare Tails
Max. Temperature +250°C
Standards Met ANSI MC96.1
Bolt thread/pitch M8 x 1mm / M10 x 1mm / M12 x 1mm
Colour Positive: Red / Negative: Yellow
Length Bolt length: 13mm or 25mm
