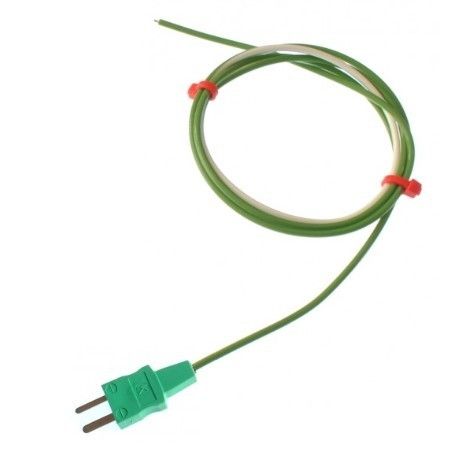

IEC PTFE Single Shot Exposed Junction Thermocouple with Moulded-on Miniature Plug - Type K

Change Currency

SKU
XE-0017
£11.59 £9.66

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
FOR POSTAGE AND DELIVERY TERMS:

A very fast response PTFE insulated thermocouple, made from a unique single shot cable construction which provides a gas, steam and water tight insulation along the cable.

This sensor is ideally suited to temperature monitoring of test pieces in autoclave and aerospace applications.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information

General Description Unique single shot cable construction Resistant to chemicals, oils and fluids. Suitable for aerospace applications and is wildly used in autoclaves.
Sensor Type Exposed Junction
Thermocouple Type K
Cable Length 1, 2, 5 & 10m
Cable Type PTFE
Core / Strands 1/0.376mm
Termination Type Terminated with a moulded-on miniature flat pin plug (Plug max temp 220°C)
Max. Temperature +250°C
Standards Met IEC-584-3
Connector Type Plug
Connector Size Miniature

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.



Product Download Icon

Why is Calibration so important?

The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.


Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.
