L200-TC Temperature Monitor

L200-TC Temperature Monitor

Details

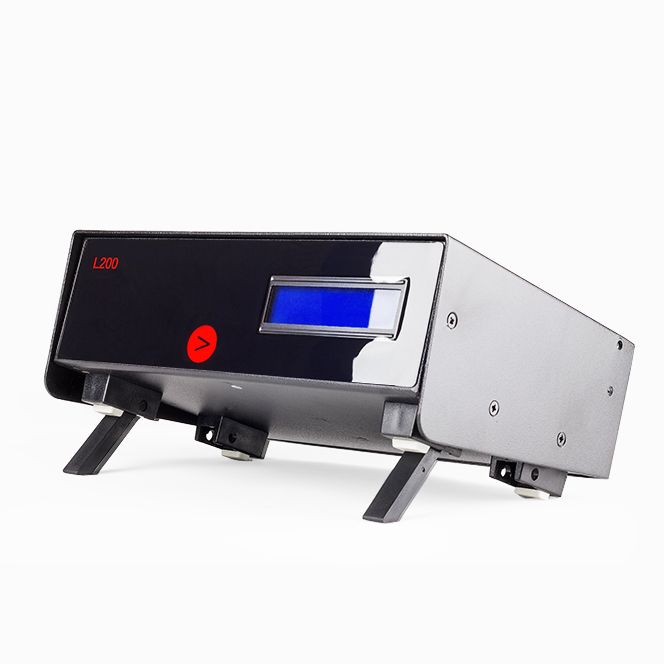

The Labfacility L200 TC thermocouple thermometers (Temperature Logger) can be used in conjunction with a PC to provide accurate, versatile 8 channel thermocouple temperature measurement, scanning and logging of measured values. It can also be used as a stand alone indicator/logger and incorporates a digital display of measured temperature.
The in-built, self-calibration facility is a rapid and convenient method for on-site calibration and does not require any additional equipment other than a special, external link.

*** See specifications tab and data sheet for full details ***

NEW Panel Mount Brackets available for this item for front or rear mounting

Panel Mount Brakets



  • Simple operation
  • Low cost - high performance
  • USB PC interface 8 thermocouple inputs, types J, K, T, E ,N ,R, S & B
  • Built in display for selected channel or all channels auto-scrolling
  • Resolution 0.1°C on L200 display, 0.01°C in software
  • Self calibration feature
  • Select °C or °F
  • PC software included for remote control and measure, logging and calibration
General Description Low cost – high performance. USB PC interface. For full specifications see data sheet under 'Product Literature' tab PC Software Supplied
Thermocouple Type 8 thermocouple (type J,K,T,E,N,R,S & B) inputs
Accuracy Thermocouples J K T E & N better than +/- 0.1°C +/-0.1% of range -100°C to span (Zero to span Type N) +/- 0.15% of range -101 to -200°C (J K T & E) Thermocouples R S & B better than+/-0.1°C +/-0.15% of range
Input / Ranges Thermocouple to IEC 584 Type J -200°C to 750°C Type K -200°C to1200°C Type T -200°C to 350°C Type E -200°C to 900°C Type N 0°C to 1300°C Type R 0°C to 1760°C Type S 0°C to 1760°C Type B 300°C to 1800°C
Resolution of data display Thermocouple ranges 0.1°C
Linearisation Conformity ±0.05°C
User Interface Front panel key for channel No. or auto-scan selection. PC software for all other functions.
Self Calibration User facility incorporated. The instrument auto-calibrates on every A/D cycle
Accessories Supplied as standard on CD-ROM Remote control & measure:- Log readings to file Download to PC Logging, calibration
GBP EUR USD JPY
Excl. VAT: £500.00 Incl. VAT: £600.00

* Required Fields

Labfacility Part No:
XE-6030-001
Lead Time:
In-Stock
Tariff Code:
90330000
Product Code
IL-240-D
Country of Origin:
United Kingdom
RoHS Compliant:

Information - Need Calibration? Call us on +44 (0) 1243 871280
