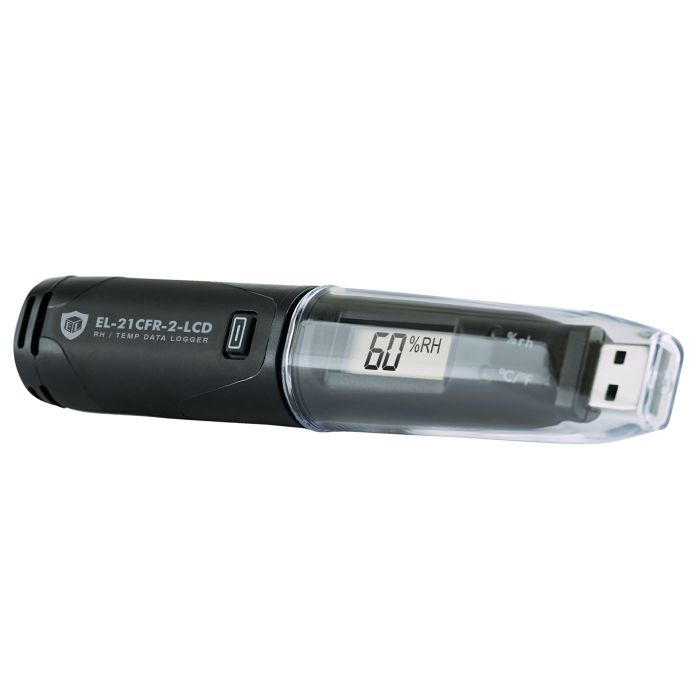

Lascar EL-21CFR-2-LCD Data Logger

Change Currency

SKU
XE-4021-001
£107.99 £89.99
Lead Time:
7 - 10 working days
Weight:
300g
Tariff Code:
90330000
Manufacturer:
Lascar
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

This 21CFR-compliant standalone data logger measures more than 16,000 readings over a -35°C to +80°C (-31°F to +176°­­F) and 0 to 100% relative humidity (RH) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum logs seen during the session for both temperature and humidity.

Used in conjunction with the 21CFR Part 11 software, the logger enjoys all of the core offerings of the original EasyLog software, but with additional 21CFR characteristics including user permissions, encrypted data which cannot be edited, full audit trail and electronic signatures for all activity.

EasyLog USB is compatible with the following 32bit and 64bit operating systems (other operating systems
are currently not supported):

  • Microsoft Windows 7
  • Microsoft Windows 8.1
  • Microsoft Windows 10 (32bit and 64bit)

Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free 21CFR Part 11 software provided.



General Description The EL-21CFR-2-LCD has been specifically developed to meet the data security required by the FDA's 21CFR part 11 regulations. As such it is suitable for use in applications where the integrity of the data is of the highest importance.
Type Data Logger
Accuracy Overall error: 0.55°C (1.04°F) typical (5 to 60°C). 2.25%RH typical (20 to 80%RH). Long term stability: <0.02°C (0.04°F) / year.
Readings Logging Rate: User selectable between 10 seconds and 12 hours
Resolution Internal resolution: 0.5°C (1°F)
Input / Ranges Measurement range: -35°C to 80°C (-31°F to 176°F) 0 to 100%RH Internal resolution: 0.5%RH
Power Consumption 2 year battery life
Power Supply 1/2 AA battery (supplied)
Accessories Wall Mount Clip Included
Stability vs amb temp Long term stability <0.25%RH / year

EasyLog 21 CFR USB Data Logger Software Setup from Lascar Electronics

Learn about Lascar's new EasyLog 21 CFR USB Data Logger an administrator based system with encrypted data that has full audit tracking to comply with the requirements of 21CFR Part 11. The product is equipped with a LCD screen and ranges of temperature, humidity, dew point and probe data loggers.
