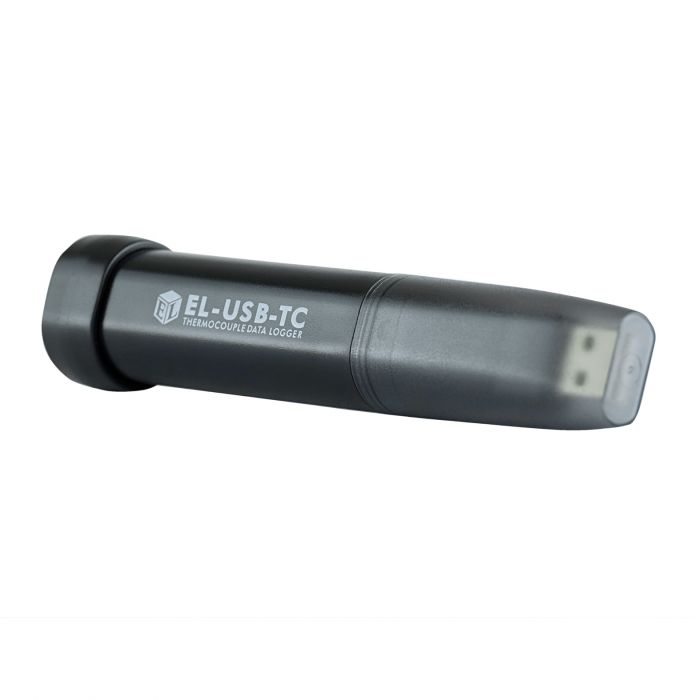

Lascar EL-USB-TC - Thermocouple Temperature K, J & T Type Data Logger with USB
Change Currency
This standalone data logger measures over 32,000 readings from inter-changeable J, K or T type thermocouples. Supplied with a K Type probe, its measurement range out of the box is from 0 to 200°C (32 to 392°F). Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery, K-type probe and wall mount clip.
EasyLog USB is compatible with the following 32bit and 64bit operating systems (other operating systems
are currently not supported):
- Microsoft Windows 7
- Microsoft Windows 8.1
- Microsoft Windows 10 (32bit and 64bit)
The EL-USB-TC is suitable for a wide variety of applications particularly those which require a wide temperature measurement range. These include:
- Food & Drink
- Building and Site Monitoring
- Laboratory
- Oven Monitoring
- Dry Ice Shipments
| General Description | This standalone data logger measures over 32,000 readings from inter-changeable J, K or T type thermocouples. Supplied with a K Type probe. |
|---|---|
| Type | Thermocouple Temperature K, J & T Type Data Logger with USB |
| Thermocouple Type | K, J, T |
| Accuracy | ±1°C / ±2°F (data logger only - thermocouple error not included) |
| Readings | 32,510 |
| Input / Ranges | Measurement Range K type (provided): 0 to 200°C (32 to 392°F) Measurement Range K type: -200 to +1350°C / -328 to +2462°F Measurement Range J type: -200 to +1190°C / -328 to +2174°F Measurement Range T type: -200 to +390°C / -328 to +734°F |
| Power Consumption | Battery Life: 2 Years |
| Power Supply | Supplied with ½ AA battery |
| Maintenance | Logging Rate: User selectable between 1 second and 12 hours |
EasyLog Data Logger Setup from Lascar Electronics
Learn about Lascar's standalone data logger. This product is equipped with a LCD screen and ranges of temperature, humidity, dew point and probe data loggers.
